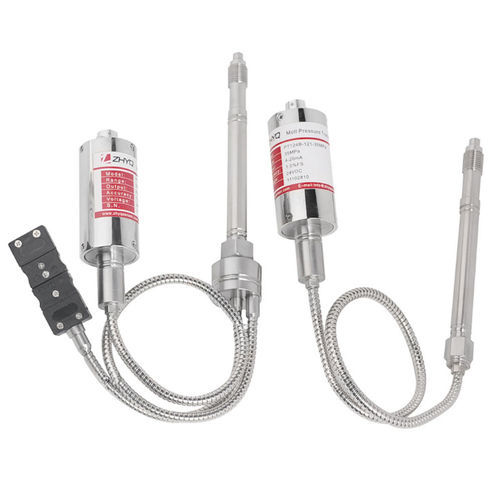

Relative pressure transducer PT124G-1 series

stainless steelplasticprocess

PT124G-111/111T/121/121T Series melt pressure transducer is economic type pressure transmitter designed with rigid stem construction. And the model PT124G-111T/121T comes with thermocouple, it can measure the pressure and temperature at one point. This product built in 80% shunt calibration, it can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. This product has advantage of stability and repeatability, good anti-jamming performance. This series product is widely used in the domestic. Features High-standard quality Stainless steel Seal Simple Installation 80% inner calibration Excellent stability and repeatability Application It can be widely used in various plastic extrusion lines for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical. Basic specification Over Pressure - 1.5 X FSO Combined Error - ± 0.5% FSO (Including Linearity, Repeatability & Hysteresis) Output - 2mV/V Input Voltage - 10VDC Repeatability - +/- 0.2%FSO Bridge Resistance Input - 345 Ohms minimum Bridge Resistance Output - 350 Ohms +/- 10% Internal Shunt Calibration (R-Cal) - 80% FSO +/- 1% Insulation Resistance - 200 megohms @ 100 Vdc Mounting Torque - 500 inch/lbs. max. Standard Wetted Parts - Diaphragm coated 15-5 PH SST Temperature sensor (Optional) - J, K, E or PT100 Electrical connector - 5PIN Process connector - M14×1.5, 1/2-20UNF, M18×1.5 Optional
