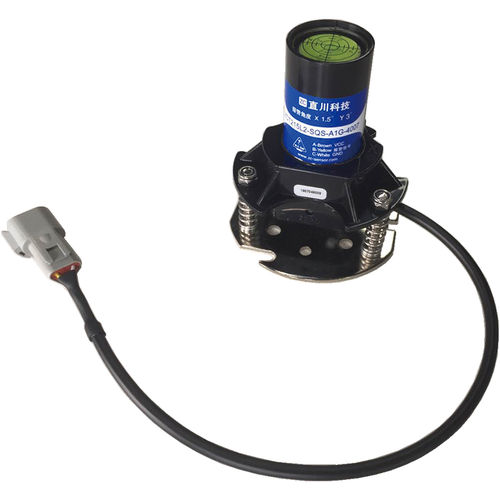

MEMS tilt switch ZCT215L2-SQS-A1G-4007

2-axiswith alarmfor aerial work platform

ZCT215L-SQS-A1G-4007 is a new generation cost-effective dual axis tilt switch researched and developed by ZC Technology. This product is based on the 32-bit high-performance microprocessor, which is calibrated to the zero deviation and sensitivity deviation of the sensor to ensure the reliability and consistency. The sensor comes with its own blister, by looking at the water bubble position and setting the zero button, so as to meet the requirements of the site and be convenient to the user. Features Built-in 32-bit microprocessor, faster operation speed. Non-contact sensitive components, longer life. Application Tower crane tilt monitoring Electric wheelchair automatic leveling tilt monitoring Aerial work platform tilt monitoring Temperature-compensated Tilt Switch for Tower Crane and Aerial Work Platform Output ： - Switch Alarm angle: Customized (1-15 degree) Power： - Voltage(8～30V) Measuring Axis ： - Dual Axis Accuracy ： - 0.1 ° Application ： - tower crane, tail lift, aerial lift, truck, dump truck, and other machinery IP Degree ： - IP67
