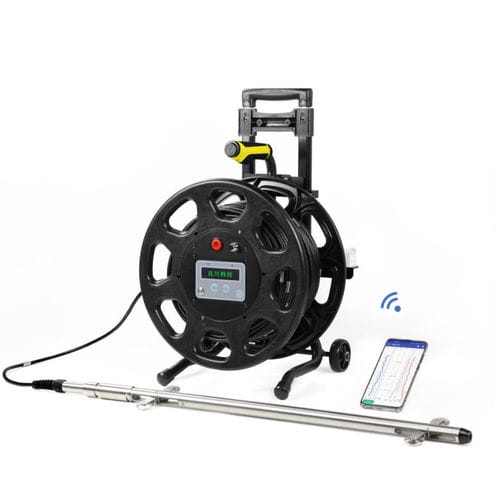

Bluetooth inclinometer ZCT-CX03E-XP230

2-axisMEMShigh-resolution

Inclinometers are widely used around the world to monitor the deformation of slopes, embankments, dams, foundation pits and tunnels. By measuring the inclination angle of a sensor probe at different locations inside a casing, we’re able to obtain data of soil displacement in vertical or horizontal direction. An inclinometer kit consists of a sensor probe, a mark cable and a datalogger. The inclinometer casing is usually installed in a vertical drilling hole through the unstable soil layer to the lower stable soil layer. The first observation can establish the initial section of casing movement, based on which the magnitude, direction and speed of soil displacement at certain locations can be measured through subsequent observations. ZCT-CX03E is the latest Bluetooth inclinometer system developed and manufactured by Shanghai Zhichuan Electronic Tech Co., Ltd. With the inclinometer, measurement activities can be configured by anAndroid mobile phone, and data collected can be uploaded immediately to the phone. With the Android app, functions such as hole locating, measurement, display, storage, alarming, data analysis and data import/export can be easily realized. Major advantages of ZCT-CX03E: - anti-vibration - stable and reliable - high protection grade - wide measurement range - high resolution and accuracy - portable, smart and user-friendly - real-time data display and uploading
