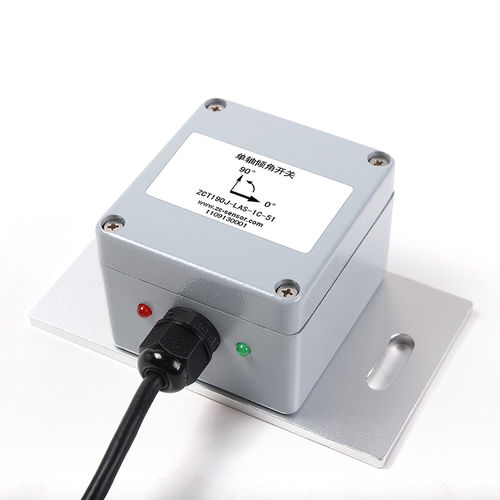

MEMS tilt switch ZCT190J-LAS-1C-51

1-axiswith alarmfor aerial work platform

ZCT190J-LAS-1C-51 is a single-axis tilt switch developed and produced by Shanghai Zhichuan Electronic Technology Co., Ltd. It measures the angle range from 0 to 90 degrees and output is RS232 serial communication port. The switch operating point can be set by the user’s command. Can be widely used in the field of construction machinery. Features: All industrial devices are used, with stable and reliable performance Impact resistance greater than 10000g Allows a wide range of power supply, with reverse power protection Adopt cast aluminum shell, protection grade IP65 Products passed CE certification Applications: Crane Hoist Aerial vehicle and lift Security control, monitoring, alarm Single-axis tilt switch with angle alarm Output ： - Switch Power： - Voltage(8～36V) Measuring Axis ： - Single Axis Accuracy ： - 0.1 °-0.5° Temperature ： - -20℃ ~ +60℃ Alarm Angle： - Single axis multiple alarm angle
