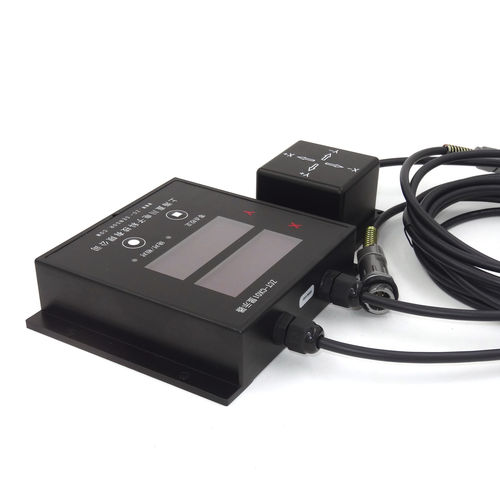

2-axis inclinometer ZCT-CX01-C

digitalMEMShigh-precision

ZCT-CX01-C inclinometer is a tilting product developed by Shanghai Zhichuan Electronic Technology Co., Ltd., which is used in the field of pipe jacking machine. It is characterized by high precision, good stability and vibration resistance. The shaft inclination information is ±10°. Display function: It can be used to display the angle information of the tilt sensor currently connected to the ZCT-CX01-C (this sensor is a special sensor for ZCT-CX01-C) and the current output mode of this tilt sensor (absolute/relative angle output); Control function: The absolute zero point of this inclination sensor can be set and the relative/absolute angle output can be switched. Inclinometer with remote display For Pipe Jacking Machine Output ： - Digital Output Power： - Voltage(8～36V) Accuracy ： - 0.01°-0.09° Application ： - Machinery IP Degree ： - IP67 Temperature ： - -40℃ ~ +85℃ Shell Size ： - 150 * 126 * 35 mm
