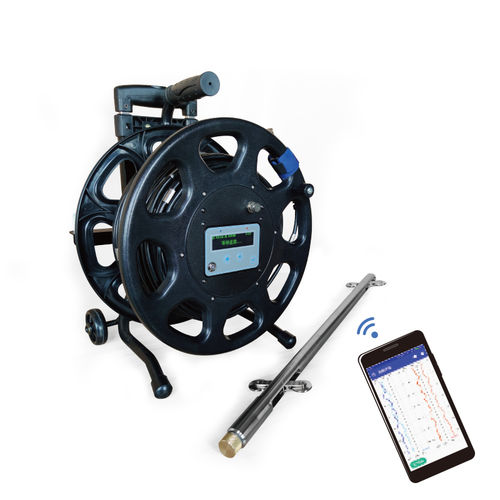

Borehole inclinometer ZCT-CX03E

dual-axisBluetoothMEMS

ZCT-CX03E is the latest Borehole inclinometer developed and manufactured by Shanghai Zhichuan Electronic Tech Co., Ltd. With the inclinometer, measurement activities can be configured by an Android mobile phone, and data collected can be uploaded immediately to the phone. With the Android app, functions such as hole locating, measurement, display, storage, alarming, data analysis and data import/export can be easily realized. Major advantages of ZCT-CX03E:  anti-vibration  stable and reliable  high protection grade  wide measurement range  high resolution and accuracy  portable, smart and user-friendly  real-time data display and uploading Specifications Unless otherwise specified, the following parameters are typical at room temperature (25℃) Item Probe accuracy: ±0.005 degree System repeatability: ±0.2 to ±1 mm/30m Protection grade3: IP68 Cable: 60 m with 6.8mm dia Probe size: 25*710 mm (diameter * length) Continuous working time: 10 hours ( 25℃ ) Operating and storage temperatures: -20 to +60 ℃ Outer size: packing without cable reel / 985*425*175 mm cable reel / 350*250*430 mm Gross weight: without cable reel 15kgs Standards: JB∕T 12204-2015/ GB50026-2007 / ISO18674-3-2017
