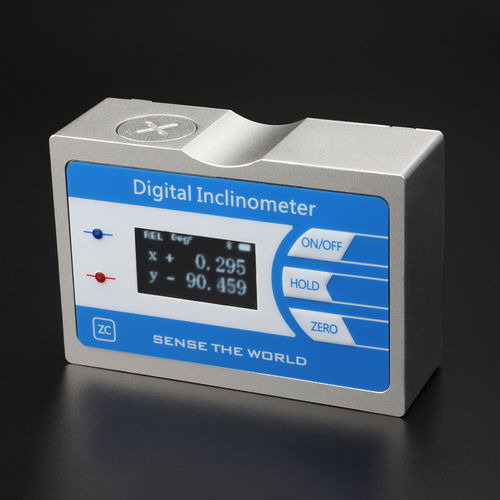

Dual-axis inclinometer ZCT-CX09

digitalMEMSelectrolytic

High accuracy wireless digital inclinometer with LCD screen and strong magnetic Output ： - Digital Output Measuring Axis ： - Dual Axis Accuracy ： - 0.001°-0.005° IP Degree ： - IP66 Temperature ： - -40℃ ~ +85℃ Shell Size ： - 94 * 64 * 32 mm Description： ZCT-CX09 is a high accuracy wireless digital inclinometer with LCD screen and strong magnetic mounting, developed and produced by Shanghai Zhichuan Electronic Technology Co., Ltd. It supports dual-axis, ±90° (recommended range ±60°) and single-axis 360° measurement. When dual-axis measurement is enabled, both Angle-measurement mode in degrees (°) and the Height-Difference-Measurement mode in millimeters/meters (mm/m) can be selected. When single axis measurement is enabled, 360°counterclockwise, 360°clockwise and ±180°measurement direction are supported; customized relative zero point is supported. Product Feature * Results displayed OLED in real time. * Portable design; multiple functions. * Built-in rechargeable Li-ion battery. * Bluetooth 5.0 BLE，customizable protocols. * Reserve the LoRa module interface to retain the scalability of long-distance communication. Application * Leveling of building construction * Machinery leveling * Angle detection of various equipment * Geological tilt measurement * Building tilt measurement Technical Parameters: Power Source - - MIN 3.2 - Normal 3.7 - MAX 4.2 - V（DC） Dual Axis Measurement: - Measurement Range1 - - ±15° - /±60°/±85°/±90° - Accuracy: ±0.005 / ±0.01 / ±0.1/ ±0.5 ° Single Axis Measurement: Measurement Range: 0-360°
