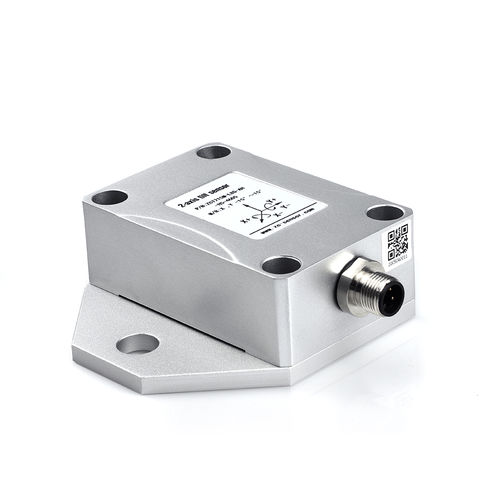

Dual-axis inclinometer ZCT215M-LBS-AH-H5-4600
digitalMEMShigh-resolution

Dual-axis inclinometer - ZCT215M-LBS-AH-H5-4600 - Shanghai Zhichuan Electronic Tech Co., Ltd - digital / MEMS / high-resolution
Dual-axis inclinometer - ZCT215M-LBS-AH-H5-4600 - Shanghai Zhichuan Electronic Tech Co., Ltd - digital / MEMS / high-resolution
Dual-axis inclinometer - ZCT215M-LBS-AH-H5-4600 - Shanghai Zhichuan Electronic Tech Co., Ltd - digital / MEMS / high-resolution - image - 2
Dual-axis inclinometer - ZCT215M-LBS-AH-H5-4600 - Shanghai Zhichuan Electronic Tech Co., Ltd - digital / MEMS / high-resolution - image - 3
Dual-axis inclinometer - ZCT215M-LBS-AH-H5-4600 - Shanghai Zhichuan Electronic Tech Co., Ltd - digital / MEMS / high-resolution - image - 4
Dual-axis inclinometer - ZCT215M-LBS-AH-H5-4600 - Shanghai Zhichuan Electronic Tech Co., Ltd - digital / MEMS / high-resolution - image - 5
Add to favorites
Compare this product


Characteristics

Number of axes
dual-axis
Output
digital
Technology
MEMS
Other characteristics
high-resolution, high-precision, rugged, shockproof, economical, IP67, waterproof, with aluminum housing, temperature-compensated, explosion-proof, wall-mounted, floor-mounted, platform, with gyroscope, for angle measurement, geotechnical
Inclination

Max.: 15 °

Min.: -15 °

Resolution

0.001 °

Description

ZCT2xxM-LBS-Ax-H5-460x is a two-axis high-precision digital (RS485) tilt sensor developed by Shanghai Zhichuan Electronic Technology Co., Ltd., which is compatible with Modbus RTU protocol; (±15° measurement rang, Aluminum alloy case, IP67). Comply with EMC/CE standard and pass IECEx Explosive Atmospheres certification. Output : - RS485 Power: - Voltage(8~36V) Measuring Axis : - Dual Axis Accuracy : - 0.001°-0.005° Application : - Structural health monitoring IP Degree : - IP67

VIDEO
