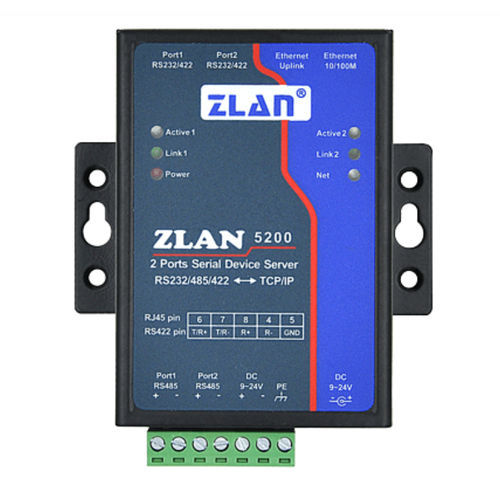

Serial device server ZLAN5200

EthernetRJ45DB9

ZLAN5200 serial device server is a 2 ports protocol converter between RS232/485/422 and TCP/IP developed by Shanghai ZLAN. ZLAN5200 support 2 RS232 ports, 2 RS422/485 ports, can realize 2 serial ports simultaneous full-duplex working through connecting to ZLAN5200 via a cable. The RS485 interface is green terminal interface, the RS232/RS485 are RJ45 Ethernet port connection interface. ZLAN can equip RJ45 to DB9 cable, 2 such line connecting to 2 RJ45 RS232 interface can lead out 2 DB9 male RS232 splice. Also 5200 provide an extra Ethernet interface, can be used as switch or cascade. ZLAN5200 support extending to 4/6/8 ports through cascade Ethernet port. 5200 provide 2 power connecting methods of power plug and terminal, wide range voltage, as well provide shell grounding protection. Feature Support full duplex, high speed converting, and no packet lost. Hight cost performance. Support TCP Server, TCP Client, UDP mode, and if communicating with ZLVirCom (our software), it automatically change to Real Com Driver Mode. Support band rate 1200~460800bps, data size 5~9bits, parity of None, Odd, Even, Mark, Space. Support CTS/RTS hardware flow control. Embedded with 485 lightning protection function. Equipped freely with our Windows Virtual Serial & Device Management Tool ZLVirCom. It supports virtual serial and searching device or modifying parameters with ZLVircom.
