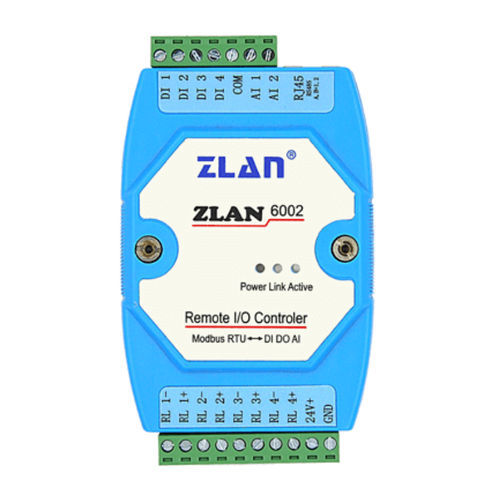

Digital I/O module ZLAN6002
analogRS485Modbus

Digital I/O module - ZLAN6002 - Shanghai ZLAN Information Technology Co.,Ltd - analog / RS485 / Modbus
Digital I/O module - ZLAN6002 - Shanghai ZLAN Information Technology Co.,Ltd - analog / RS485 / Modbus
Digital I/O module - ZLAN6002 - Shanghai ZLAN Information Technology Co.,Ltd - analog / RS485 / Modbus - image - 2
Digital I/O module - ZLAN6002 - Shanghai ZLAN Information Technology Co.,Ltd - analog / RS485 / Modbus - image - 3
Digital I/O module - ZLAN6002 - Shanghai ZLAN Information Technology Co.,Ltd - analog / RS485 / Modbus - image - 4
Add to favorites
Compare this product


Characteristics

Signal type
digital, analog
Bus
RS485, Modbus
Number of inputs/outputs
4 digital inputs, 4 digital outputs
Type
remote
Applications
voltage, temperature, current

Description

ZLAN6002 Remote IO Controller is an intelligent device developed by Shanghai ZLAN of digital input output and analog quantity input based on RS485. The remote IO controller can conveniently connect to 485 bus to realize accessing RS485. ZLAN6002 is the ideal choices for user realizing remote control and data acquisition. ZLAN6002: Base on RS485 transmission, also can monitor 4 channels digital input, 2 channels analog quantity input and control 4 channels relay output at the same time. The remote IO control and data acquisition use Modbus protocol. Feature 1) 4 Digital input: Passive switch (dry node) Active power level (wet node, low level voltage is 0~3V; high level voltage is 8~24V, measuring in 24V power) 2) 2 Analog quantity input: different input method corresponding to different sub-models. Voltage signal input: 0~5V or 0~10V. Current signal input: 4~20mA. Resistant input: 0~10k or resistant type temperature/ humidity sensor and so on. 3) 4 digital output. Relay output (5A@AC250V/DC 30V)
