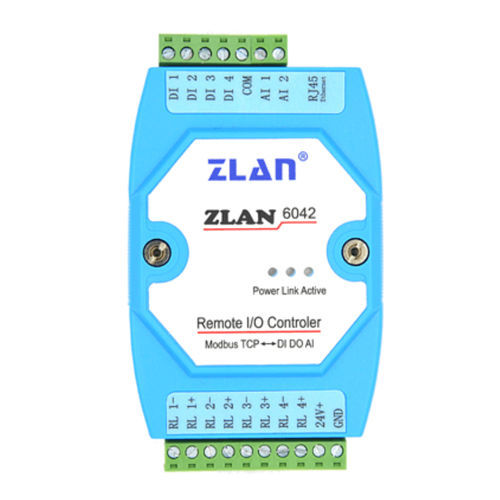

Digital I/O module ZLAN6042
analogEthernetModbus RTU

Digital I/O module - ZLAN6042 - Shanghai ZLAN Information Technology Co.,Ltd - analog / Ethernet / Modbus RTU
Digital I/O module - ZLAN6042 - Shanghai ZLAN Information Technology Co.,Ltd - analog / Ethernet / Modbus RTU
Digital I/O module - ZLAN6042 - Shanghai ZLAN Information Technology Co.,Ltd - analog / Ethernet / Modbus RTU - image - 2
Digital I/O module - ZLAN6042 - Shanghai ZLAN Information Technology Co.,Ltd - analog / Ethernet / Modbus RTU - image - 3
Digital I/O module - ZLAN6042 - Shanghai ZLAN Information Technology Co.,Ltd - analog / Ethernet / Modbus RTU - image - 4
Add to favorites
Compare this product


Characteristics

Signal type
digital, analog
Bus
Ethernet, Modbus RTU, Modbus TCP, serial, RS485
Number of inputs/outputs
4 digital inputs, 4 digital outputs, 4-channel, 4 relay outputs, 2 analog inputs
Type
remote
Applications
voltage, temperature, current

Description

ZLAN6042 Remote IO Controller is an intelligent device developed by Shanghai ZLAN of digital input output and analog quantity input based on Ethernet or RS485. The remote IO controller can conveniently connect to Ethernet and 485 bus to realize accessing TCP connection, RS485. ZLAN6042 is the ideal choices for user realizing remote control and data acquisition. ZLAN6042: Based on Ethernet transmission, support Modbus TCP to Modbus RTU, support virtual serial port, can monitor 4 channels digital input, 2 channels analog quantity input and control 4 channels relay output at the same time. The remote IO control and data acquisition use Modbus TCP protocol or Modbus RTU protocol. Feature 1) 4 Digital input: Passive switch (dry node) Active power level (wet node, low level voltage is 0~3V; high level voltage is 8~24V, measuring in 24V power) 2) 2 Analog quantity input: different input method corresponding to different sub-models. Voltage signal input: 0~5V or 0~10V. Current signal input: 4~20mA. Resistant input: 0~10k or resistant type temperature/ humidity sensor and so on. 3) 4 digital output. Relay output (5A@AC250V/DC 30V) 4) ZLAN6042 is equipped freely with our Windows Virtual Serial & Device Management Tool ZLVirCom. It supports virtual serial and searching device or modifying parameters with ZLVircom.
