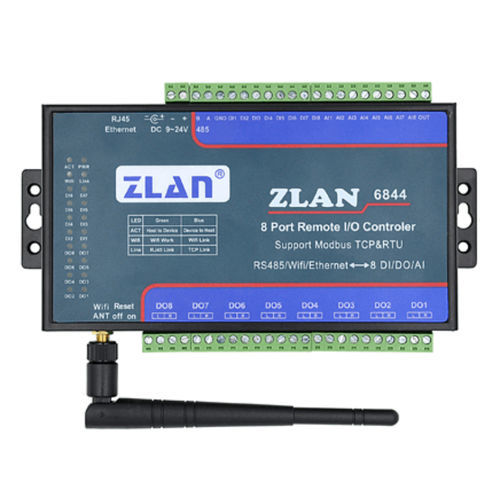

Digital I/O module ZLAN6844

analogEthernetRS485

ZLAN6844 IS 8 channels remote IO controller launched by Shanghai ZLAN after ZLAN6042. The controlled channels from 4 channels of 6042 extending to 8 channels, including 8 channels Digital Input(DI), Digital Output(DO), Analog Quantity Input(AI). The DI support dry contact and wet contact with opto-isolator; DO is relay output with 5A 250VAC or 5A 30VDC control ability; the before 4 channels of AI input support 0~5V voltage quantity input, the after 4 channels support 4~20mA current input, the accuracy is 10 bits. ZLAN6844 support 3 communication methods of Ethernet, RS485, Wifi. ZLAN6844：Compared with 6842, 6844 adds WiFi interface, it can save the wiring trouble. Meanwhile it has Ethernet interface. WiFi can be neither as AP nor as SAT style to connect router. Feature 1) 8 channels digital quantity input: Support passive switch value (dry contact) and active level (wet contact). 2) 8 channels digital quantity output： The output type is relay output (5A@AC250V/DC30V). 3) 8 channels analog quantity input: in default the first 4 channels are 0~5V voltage input, the after 4 channels are 4~20mA. If need customized, can modify any channels to the below 4 types: (1)Current signal input: 4~20mA (2)Voltage signal input: 0~5V (3)Voltage signal input: 0~10V (4)Resistance impedance input: 0~10k or resistor-type temperature humidity sensor, etc.
