Temperature converter ZLSN2002I

Ethernethigh-speedindustrial

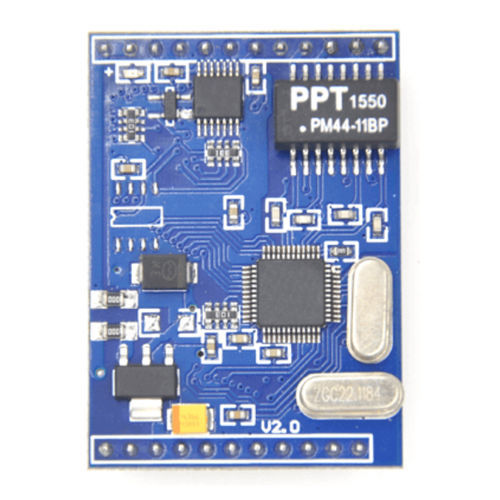

ZLSN2002I is the second generation module with high stability, provide 23 dual pin, pluging in user PCB to use, the module has integrated network transformer, just directly connect the 4 line of RJ45. It has through -40℃～85℃ industrial temperature verification and high anti-electromagnetic interference test, passed ±4KV EFT test, through 5KV/8KV electrostatic discharge verification (Model ZLSN2002I), over-current over-voltage protection, Ethernet surge protection (Model ZLSN2002I), Ethernet grounding protection (Model ZLSN2002I). Features Stable and reliable, support full duplex, high speed, long time data forwarding, not losing packets. Working mode: support TCP Server, TCP Client, UDP mode, UDP multicast. Support includes: UDP broadcast, device pair communication, Realcom mode. UDP mode supports simultaneous communication with multiple visitors. The baud rate supports 1200~460800bps, and can be customized to special baud rate. The data bits support 5~9 bits, and the check bits can be None, Odd, Even, Mark, and Space, supporting flow control CTS/RTS, DSR/DTR, XON/XOFF, 1~2 stop bits. Support virtual serial port, equipped with Windows virtual serial port & device management tool ZLVircom. Module parameter modification mode is flexible and varied. Support DHCP, DNS and no data restart functions. Support read and write for 7 IO pins.
