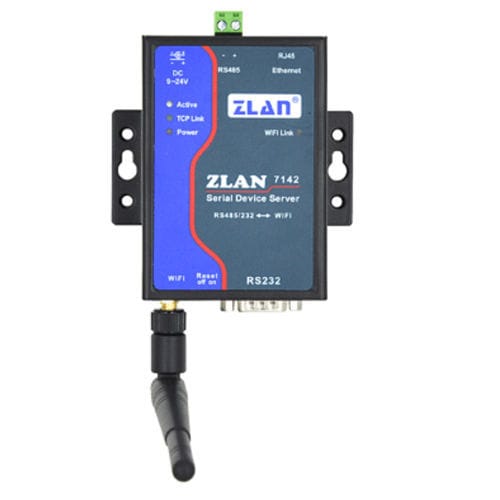

RS232 device server ZLAN7142

RS485Modbusindustrial

ZLAN7142 is a high-performance WIFI serial device server launched after ZLAN7100 by Shanghai ZLAN. Compared with ZLAN7100, ZLAN7142 are more efficient and convenient to use, which is suitable for the real-time and stable industrial field, especially suitable for wireless remote monitoring of equipment such as PLC. ZLAN7142 not only has the function of RS232/RS485 to transfer WIFI TCP/IP, but also integrates Modbus TCP gateway function to facilitate the transformation of Modbus RTU protocol into Modbus TCP WIFI protocol. For users who use the virtual serial port, the virtual serial port can be realized using ZLVircom software. The original serial port PC software no need modification. The Modbus TCP protocol in configuration software can also be used to connect to the RTU device directly to realize the wifi network communication. High performance industrial serial port to WIFI serial device server, support RS232/485 to WIFI. 9~24V power supply, support Modbus TCP to RTU. Support (IEEE802.11g/b/n) protocol. Support virtual serial port. Features It has all the advantages of ZLAN7100, refer to ZLAN7100. And have the following more advantages: Adaptive serial port parameters. When using virtual serial port, ZLAN7142 can self-adjust the corresponding parameters according to serial port baud rate, check bit and other adaptive parameters opened by the PC serial port software. This enables ZLAN7142 to be used in PLC applications with complex serial port protocols. Support for higher baud rates, including 230400 and 460800. Support for 9-bit data, 8-bit data communication with check mode.
