Metal profile roll forming machine

precisionautomaticpunching

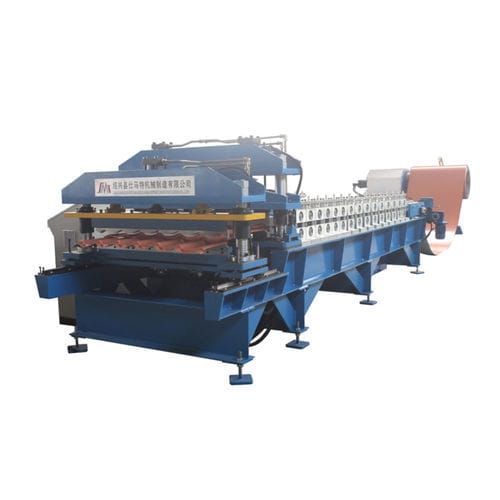

Smartech Machinery metal tile roll forming machine consists of decoiler, feeding device, roll forming stations, step punching device, cutting device and an electric controlling system. You can also require to add pre-cutter device, filming device, safety guard device and automatic stackers for options. We use guide column shaft bearing for metal roof tile material thickness is changed. By a specific set of roller stations, the metal tile can be formed step by step and the punching die is designed and made according to the profile for punching the tile steps. For length of sheets, you can put in the touch screen so the sheets will be cut at the set length by control of PLC and Encoder. It is a full automatic and continuous forming machine for metal roofing tiles. Features Metal tile roll forming machines come with a variety of features designed to enhance their functionality, efficiency, and ease of use. Here are some of the key features: High Precision Rollers: Typically made from high-grade steel or chrome-plated to ensure durability and precision; Advanced Control Systems: With PLC control and touchscreen interfaces for easy operation and monitoring. And you can also choose to get a remote control for easier operation while running the machine; Step Punching: Designing and making the punching mould as the profile, normal step depth is 15mm/20mm/25mm without scratching on sheet surface.
