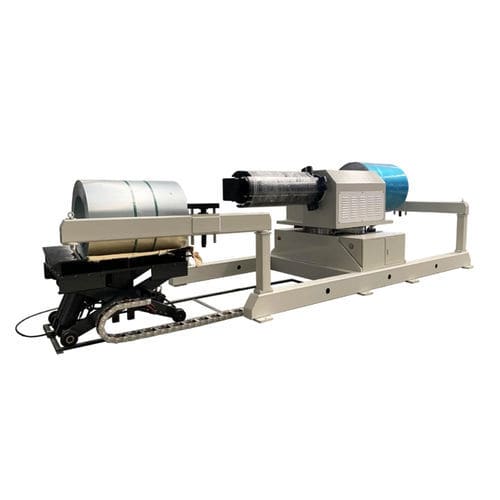

Hydraulic decoiler

electricfor sheet metal

8T decoiler with coil cart is for loading the metal coils under capacity of 8T. The coil cart significantly making the operation easiler and allowing for efficient loading the heavy coils. The shaft of the cantilever type extension cope isΦ485-Φ515, controlled by the valve hydraulic system, and the mechanical parts. There's electric control system for driving the shaft forward and backward. Use Smartech Machinery 8T decoiler with coil cart normally works with our metal profile roll forming machines. By using a crane or forklift to put a steel coil on the coil cart,the coil cart can feed the coil to the decoiler mandrel. Expanding the mandrel for holding the coil tightly while rotating forward and backward. The coil releasing speed is controlled by ultrasonic control, while the material touching to the control closer, the decoiler will decelerate and stop. While the distance between material and ultrasonic control is big, the decoiler will releasing the coil faster. Features The frame using Beam steel, and Shot blasted process after welding. Shaft of the cantilever type extension cope: Φ465-Φ515, controlled by the valve hydraulic system, and the mechanical parts. Separately working, through reducer by Chain driving the shaft to decoiling or recoiling the coil material. When working assort with the forming machine, the decoiler uncoiling the coil actively, control the uncoiling speed by ultrasonic sensor. Using separately hydraulic system to supporting the working of the decoiler.
