Automatic decoiler

hydraulicelectricfor sheet metal

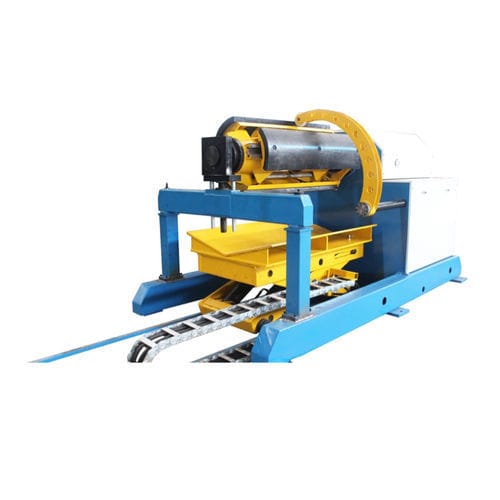

15T steel uncoiler machine is for loading the coils under capacity of 15T. It normally works for the metal deck roll fomers since the coils for deck profiles are bigger and sometimes will up to 15T. It is an automatic decoiler with coil car and pressing arm. The machine adopts with cantilever type structure. Including Machine frame, cantilever type extension, decoiler driving system (by motor), coil car, Hydraulic system, electric control system Etc, with the function of install and uninstall the coil. Use Loading and Unloading: The coil car is used to transport heavy coils from storage to the decoiler. It lifts the coil to the correct height and aligns it with the mandrel. Once the coil is in position, the mandrel expands to grip the inner diameter of the coil securely. Uncoiling: The decoiler rotates the mandrel to uncoil the material. The braking system ensures controlled uncoiling to prevent tangling or damage. The motor and drive system can be adjusted to match the speed requirements of the downstream processing equipment. Material Handling: The decoiler and coil car work together to handle heavy coils efficiently, reducing manual labor and the risk of injury. The system can be integrated with other equipment such as straighteners, feeders, and shears for a continuous production line. Features Efficiency: Automates the handling and uncoiling of heavy coils, speeding up production processes. Safety: Reduces the need for manual handling of heavy coils, minimizing the risk of workplace injuries. Precision: Ensures accurate alignment and controlled uncoiling, improving the quality of the final product.
