Before mass-producing automotive panels, appliance housings, or furniture frames, the initial coiled rolls of steel, aluminum or other metal alloys first pass through a vital processing stage-metal slitting. Smartech Machinery steel slitting machine utilizes hardened rotary knives to continuously slit coiled material as it feeds through at high speed. With extreme accuracy, the sharp circular knives rotate at surface feet per minute, optimized for clean shearing through steel, stainless steel, aluminum and various metal alloys.
Use

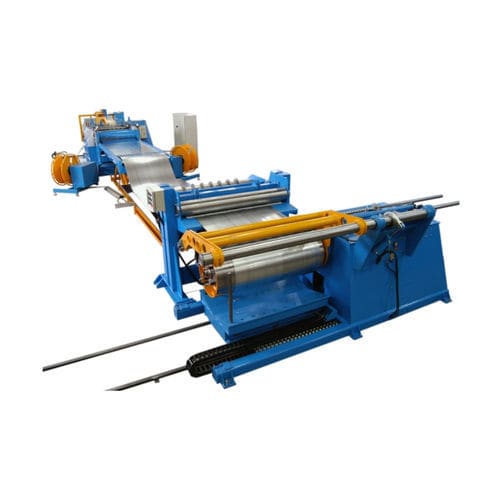

Steel coil slitting machine from Smartech Machinery consists of decoiler with coil car, guiding device, slitting machine, scrap winder, tensioning unit and recoiler with coil car. It is an automatic machinery for deviding a large steel coil to several narrow width coils and it is an very important machinery in steel coil manufacturers or metal profile manufacturers. Following is the process of slitting metal coils:
Load the master coil onto the powered unwind arbor
Thread strip through sets of circular slitters and edge guides
Set slitting heads and edge trim knives to needed widths based on job specifications
Initiate machine for continuous feed-slitting blades rotate at fixed RPMs for clean cuts
Remove trimmed edge waste for recoiling slit strips to certain diameters
Conclude order and reset/replace slitting heads for next job
