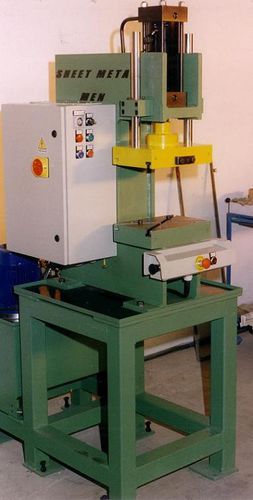

Hydraulic press assemblyC-framewith pressure regulator
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- assembly
- Structure
- C-frame
- Other characteristics
- with pressure regulator
- Applications
- for sheet metal
- Force
Min.: 0 kN
Max.: 150 kN
Description
Structure is made in thick steel plate, welded, stress relieved and shot-blasted.
Slide guided by columns that slide throught self lubricating bushes.
Hydraulic group, fixed in one side of the machine, is equipped with:
- Main-motor pump unit.
- Block of control valves.
- Auxiliary device for actuate the filter and the oil cooler with thermostat for activate the cooling system.
- Electronically oil gauge.
Adjustable pressure switch.
Electric cabinet fixed in one side of the press. It contains all the necessary components for the control of the machine, protection of motors, security circuits and controls.
Operating desk with digital control with display to set and visualize the sizes.
Encoder with wire unit to control the stroke of the slide.
Photoelectric barriers.
