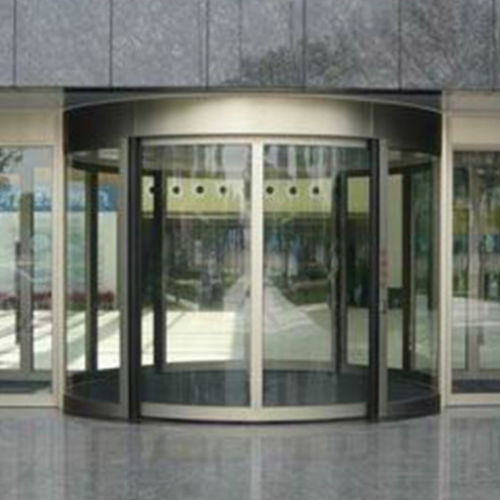

Curved sliding door automaticmotorizedexterior
Add to favorites
Compare this product
Characteristics
- Type
- curved sliding
- Other characteristics
- automatic, motorized
- Applications
- exterior
- Width
Max.: 2,500 mm
(98 in)Min.: 500 mm
(20 in)
Description
TYPE - TH-R9
MODEL - SINGLE-WING - BI-PARTING
DOOR WEIGHT - 100kg*1(door) - 100kg*2(doors)
DOOR WIDTH - DW=500 to 2500MM - DW=500 to 2500MM
INSTALL WAY - Surface Install - Surface Install
MOTOR - DC 24V Brushless motor
CONTROL - Standard Micro-controller
POWER CONSUPTION - 75W
VOLTAGE - AC 80V to 250V (either AC 80V to 250V)
ENVIRONMENTAL TEMPURATURE - Less than 20℃~+50℃
VOLUME - Max 60 Decibels
STATING SPEED - 600mm/(second) - 550mm/(second)
STATING TIMES - 0 sec to 20 sec (Regulable)
TRANSSION IMPORTANT CONDITION - Rack Belt(Regulable)
OPENING DOOR RANGE - Full/Half -open (Regulable)
PFC POWER EFFICIENCY - 0.95 (AC 100V /in AC 100V Full load)
TRACTION FORCE - 4.5kg
