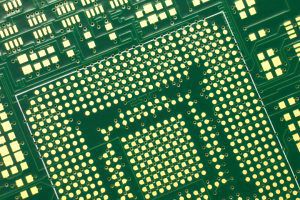

Metal core printed circuit board

6 layers8 layers2-layers

Standard circuit boards cover still a big percentage of the worldwide pcb use. SYE build these boards with mainly 2-8 layers with a wide range of technical features. Standard plated-through printed circuit boards are in use throughout the electronics branches, and more particularly in industrial and automotive products. SYE offers Standard printed circuit boards with the following features: Edge plating for shielding and ground connection Metal core for high thermal conductivity (metal, copper or aluminium) Insert Coin Technology Copper inlay for hotspot cooling Solder resist in green, white, black, blue, red, yellow, etc. Copper thickness of over 140μm All surfaces which are commonly used in the printed circuit board industry
