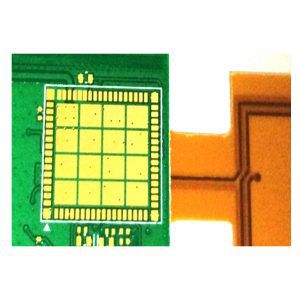

Flexible printed circuit board Rigid-Flex

8 layers14 layers

Rigid-flexible printed circuit boards directly combine the advantages of flexible and rigid printed circuit boards. This combination of technologies brings the user a variety of advantages especially in terms of signal transmission, overall size, assembly and stability. SYE offer a wide range of products and Expertise. In response to market requirements, SYE also offers mass production of ist HDI technology in combination with flexible printed circuit boards. Rigid-flexible printed circuit boards: Printed circuit boards with rigid areas, and flexible areas with reduced numbers of layers Combination of polyimide and FR4, or FR4 and thin laminate Rigid-flexible printed circuit boards, which connect rigid boards without the need for cables or connectors, resulting in better signal Transmission All commonly used surfaces available HDI rigid-Flex with the following features: Combination of HDI rigid and HDI flex layers Stacked and staggered microvias on all layers Halogen-free base material (medium Tg) and polyimide
