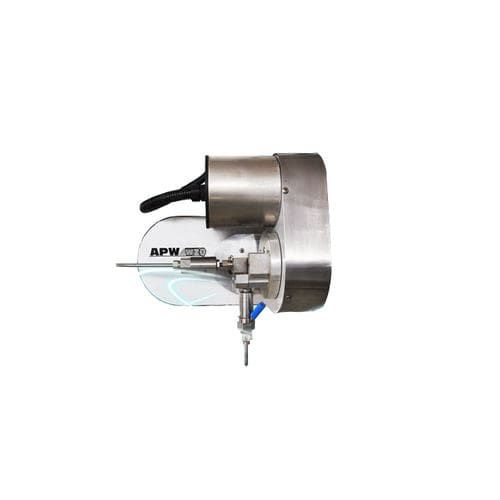

Water-jet cutting head AB

5-axis2D3D

Following the developing of control and motion technology, APW 5-axis waterjet has become a reality. Base on the normal axis on the waterjet which has 3 different axis named X (back/forth), Y (left/right) and Z (up/down), APW 5-axis waterjet adds an additional A-axis (angle from perpendicular) and an additional C-axis (rotation around the Z-axis). APW waterjet 5-axis cutting head 5-axis cutting head Equipped with the dedicated software, 5-axis can accomplish the 2D/3D cutting by offering tilt angles ranging from 0°to 45°. By using it, you can cut cones from flat sheets, drill holes into tubes or produce ribbed/beveled edges. It fulfills arbitrary curved surface machining like the oblique, vertical, conical surface, circular surface, rotating surface etc. APW 5-axis waterjet cutting opens up a wide range of applications at waterjet industry. Although, it is still a relatively new technology, from a business standpoint, the profit margins of this type of work is extremely valuable and attractive. Main Parameters A-axis: 2D auto 75° OR 3D auto 75° C-axis:auto 360° Features of APW 5-Axis Cutting Head CE Certificate ISO9001 Certificate 2D/3D cutting by offering tilt angles ranging from 0°to 45° No heat affect zone 20 National Patents Professional Waterjet CNC System Multiple 5-Axis waterjet cutting heads No secondary finishing required Achieve zero taper without speed reducing
