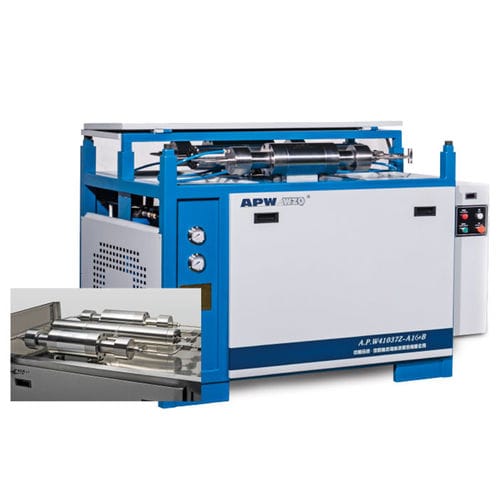

Water pump A16+B

electricindustrialfor water-jet cutting machines

A16B Pump Performance In order to meet the demands of different customers, APW launched A16+B Intensifier Pump. Compared with A16, a remarkable advantage of A16+B is that it equips one spare intensifier. These two intensifiers are able to work alternately, which makes the machine can run 24h*7d. It is because if one of these two intensifiers broken down, the machine can use the other intensifiers quickly without any wasting time on waiting for stopping to repair the pump. It increases the working efficiency and achieves the non-stop operation goal. A16B Pump System Parameter Power: 50hp (37kw) Max. Cutting Pressure: 60000PSI (413.685MPa) Max. Water Flow Rate: 1.0gpm (3.8lpm) (55,000PSI/380MPa) Max. Orifice Diameter (0.33mm) Control Power Supply: DC24V;10Ampa DC Working Power Supply: AC380V 50Hz Max. Noise Level: 75db (A) Working Temp. 40°F(5°C) ~ 104°F(40°C) Storage Temp. 36°F(2°C) ~ 104°F(40°C) Length: 1715mm Width: 1035mm Height: 1191mm Gross Weight: 2410lbs (1085kg) Cutting Water Supply System Min Cutting Water Supply Flow Rate: 4gpm (15.1lpm) Min Cutting Water Supply Pressure: 35PSI (0.24MPa) Attenuator Volume: 1.2L Hydraulic System Max. Hydraulic Pressure: 2900PSI (20MPa) Hydraulic Oil Tank Volume: 30Gal. (114L) Cooling System Min. Cooling Water Supply Flow Rate: 3gpm (11.4lpm) Min. Cooling Water Supply Pressure: 0.3MPa Feature Continuously Working Pressure: 380MPa Back-up Intensifier
