Color spectrophotometer YS6020

spheretransmissionreflectance

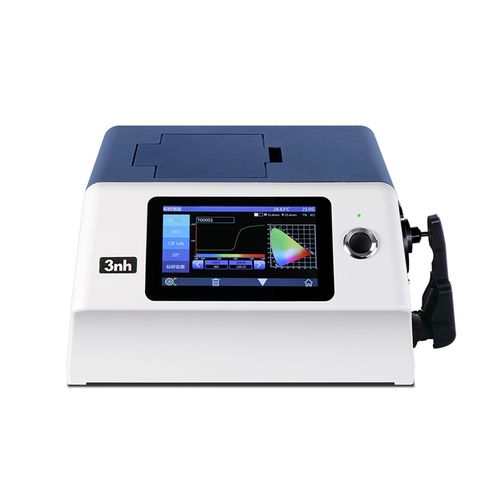

YS6020 Xenon lamp Benchtop Spectrophotometer Introduction: YS6020 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent intellectual property. YS6020 has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry (including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes YS6020 ideal for color analysis within R&D and laboratory environments. Features 1, High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Bluetooth 2.1; Concave Grating. 2, Double Array 256 Image Element CMOS Sensor; Long life-span stable xenon lamp. 3, With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission. 4, Auto identify measuring aperture. Freely switchable between 3 measuring apertures: Φ 25.4mm/8mm/4mm. Users also can customize apertures. 5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision. 6, Wavelength range 360nm – 780nm. Built-in 400nm cut off, more professional in UV measurement. 7, Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable. 8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement. 9,A variety of optional accessories: Reflection sample holding tool, transmission fixture, micro 4mm aperture transmission test components, instrument inversion test components, applicable to more working conditions.
