Diaphragm pump BD-04W
waterfor liquified gaswith DC motor

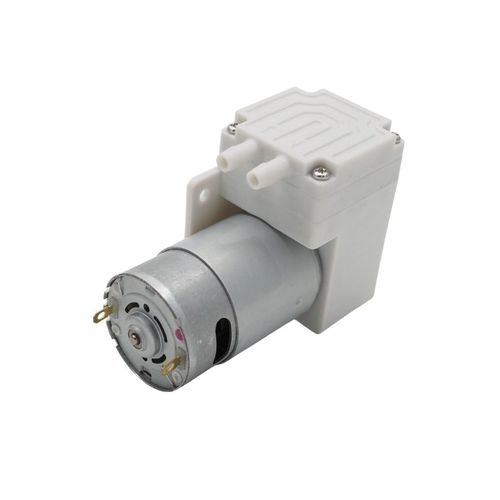

Diaphragm pump - BD-04W - Shenzhen Boden Technology Development Co., Ltd - water / for liquified gas / with DC motor
Diaphragm pump - BD-04W - Shenzhen Boden Technology Development Co., Ltd - water / for liquified gas / with DC motor
Diaphragm pump - BD-04W - Shenzhen Boden Technology Development Co., Ltd - water / for liquified gas / with DC motor - image - 2
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
water, for liquified gas
Operation
with DC motor
Priming
self-priming
Mobility
stationary, mobile
Domain
industrial, for the food and beverage industry, for agricultural applications
Applications
transfer, circulation, suction
Material
PTFE, EPDM
Fluid specification
for low-viscosity fluids, for corrosive fluids
Voltage
24 V, 12 V
Protection level
maintenance-free, corrosion-resistant
Other characteristics
suction, OEM, high-flow, dry, mini pump, custom, PWM
Flow

Max.: 1.5 l/min
(0.39626 us gal/min)

Min.: 1 l/min
(0.26417 us gal/min)

Pressure

-0.03 MPa

Head

2 m
(6'06" )

Power

Max.: 10 W
(0.01 hp)

Min.: 7 W
(0.01 hp)

Fluid temperature

Max.: 45 °C
(113 °F)

Min.: 0 °C
(32 °F)

Input diameter

3.5 mm
(0.138 in)

Output diameter

6.5 mm
(0.256 in)

Length

101 mm
(4 in)

Width

40 mm
(1.57 in)

Height

72 mm
(2.83 in)

Weight

305 g
(10.76 oz)

Description

Miniature diaphragm pumps use DC motor technology to drive a rubber diaphragm through an eccentric wheel. Pump Construction Principle: Miniature diaphragm air pump is driven by a motor driven eccentric wheel to drive the diaphragm inside the pump to do reciprocating motion and the pump cavity one-way valve group open and close, circulating driven airflow, therefore generating negative and positive pressure. Pumps Features: BD-04 series is a miniature diaphragm gas pump, the largest feature is the small size, with mounting holes, a variety of pressure and flow options, mainly for inflatable, suction. More features of the air pump are as follows. Efficient and durable design Minimum size and lightest weight Oil-free and non-contaminating media Maintenance-free, easy to operate, easy to install Excellent air tightness The life span of these small air pumps depends mainly on the type of motor used. We offer both brushed and brushless motors, up to 3000-5000 hours with premium DC brushless motors, and up to 800-1000 hours with brush motors. With optional brushless DC motors, we also offer Pulse Width Modulation (PWM) option. This unique feature is ideal for applications that require precise control of pump output
