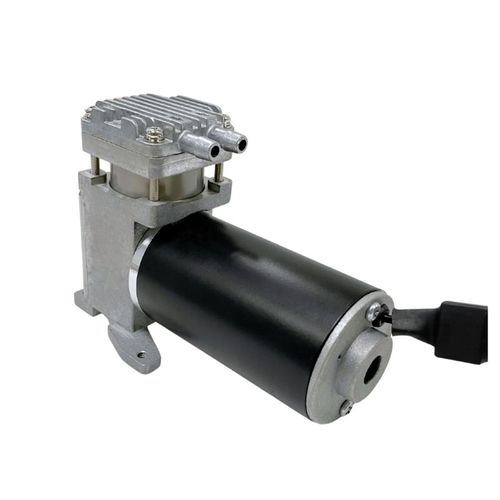

Reciprocating piston compressor BD-08A-S/BD-08V-S

airbrushless DCfixed

positive pressure pump and BD-08VB-S negative pressure pump products, consisting of long-life brushless motor and Aluminum alloy material pump body, the above parameters are the hottest selling ones, we also support customization of other parameters, please feel free to ask. The Working Principle of the Reciprocating piston Air Compressor: Under the drive of the electric motor, the piston in the cylinder makes a reciprocating linear movement through the action of the crank connecting rod tension. Pumps Features: The BD-08 series single head is a special miniature air compressor & air pump, the most important feature is the positive and negative use, ultra small size, high pressure & flow rate, mainly used for inflation, pressurisation, absorption and vacuum. More features of this air pump are listed below. Piston construction design – compact structure High torque brushless motor – efficient and durable Aluminium material – ultra light & high temperature resistant 4 hole fixing – easy to operate & install Flexible pump head – can be adjusted in 4 directions FKM valve – enhanced life Life Span: The life span of these small air compressor depends mainly on the type of motor used. We offer both brushed and brushless motors, up to 5000 hours with premium DC brushless motors, and up to 1000 hours with brush motors. With optional brushless DC motors, we also offer Pulse Width Modulation (PWM) option. This unique feature is ideal for applications that require precise control of pump output
