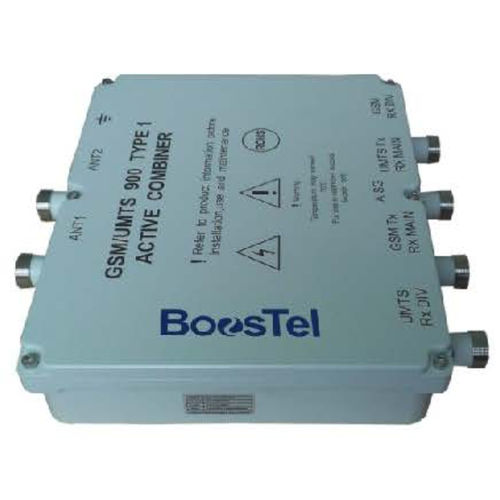

Combiner BT-3T12

Continuous Average Power - 18dBm Input Power with no damage - 12dBm(ANT ports) Power withstanding without damage - 46dBm max(Div Rx ports) Isolation Between ports: UMTS TX/RX Main to GSM RX Div GSM RX Div to UMTS TX/RX Main GSM TX/RX Main to UMTS RX Div UMTS RX Div to GSM TX/RX Main - 35 dB min, Rx band 20 dB min, Rx band 35 dB min, Rx band 20 dB min, Rx band Transmission Characteristics (ANT to Tx/Rx;ANT to Rx) 50-800MHz 1050-2200MHZ - Rejection relative to Rx band 30 dB min 40 dB min Inter-modulation (2*43dBm Tx Carries at BTS port) - -110dBm max.in Rx band at ANT port (measured at Rx port) AISG Version - 2.0 (for AISGv1.1. please contact us) DC Supply Current, Total, Typical - 110 mA at 30V, 210 mA at 12V AISG Connector Current Rating - 3A peak. 2 Amp continuous, pin 6 Field Firmware Upgradeable - Yes, by AISG download Alarm Management - AISG Impedance - 50 Q Connector - 6 X 7-16 DIN-Female Operating Temperature - -40°C - +65°C Relative Humidity - 5% - 95% Application - Indoor or Outdoor(IP67) MTBF - 500000hours min Dimensions - 290x350x76mm (without connectors, without mounting brackets) Weight - 10.5Kg
