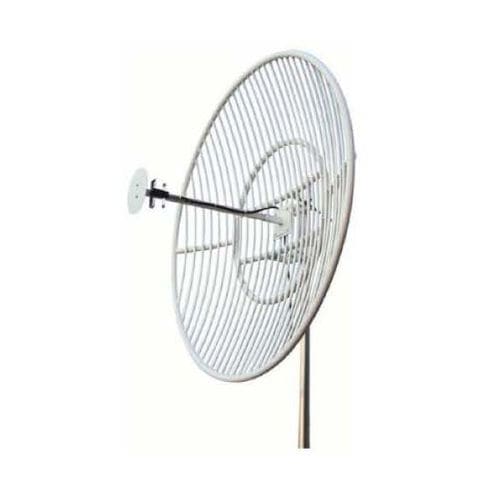

Radio antenna BT-800PL15parabolic
Add to favorites
Compare this product
Characteristics
- Network
- radio
- Type
- parabolic
- Frequency
Max.: 896 MHz
Min.: 824 MHz
- Gain
20 dB
Description
Frequency Range - 824-696 MHz
Working Bandwidth - 70 MHz
Gain - 20dBi
Horizontal Beam Width - 13°
Vertical Beam Width - 13°
Front-to-Back Ratio - £30 dB
V.S.W.R. - £1.5
Nominal Impedance - 500
Polarization - Vertical
Max. Power - 100 W
Connector - 7/16DIN-Female
Dimensions - 01.5m
Weight - 25kg
Wind Survival - 60 m/s
Mounting Mast Diameter - 050 to 075 mm
