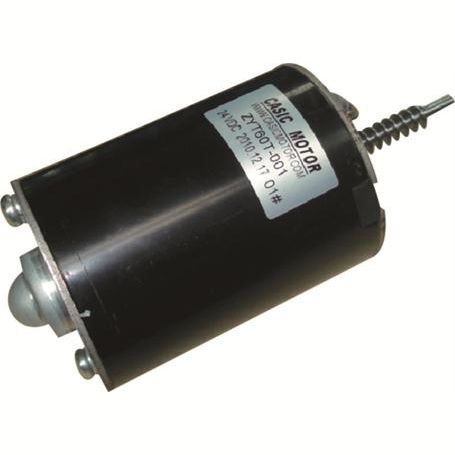

DC motor ZYT60T-001universal24 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- universal
- Voltage
- 24 V
- Configuration
- permanent magnet
- Applications
- for industrial applications, for automatic doors
- Torque
0.145 Nm
(0.1069 ft.lb)- Rotational speed
Max.: 3,100 rpm
(19,477.87 rad.min-1)2,600 rpm
(16,336.28 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
60 mm
(2.36 in)
Description
PMDC Motor
Model : ZYT60T-001
Rated voltage : 24VDC
No load current : 0.8A Max
No load speed : 3100 Rpm±10%
Rated current : 3.0A Max
Rated speed : 2600 Rpm±10%
Rated torque : 0.145N.m
Direction of rotation : CCW
Noise : 65dBA Max
Application:
Automatic Door,Industrial Equipment
Size:
φ60mm×L102.5mm
Parameter:
24VDC/3100Rpm/0.145 N.m
