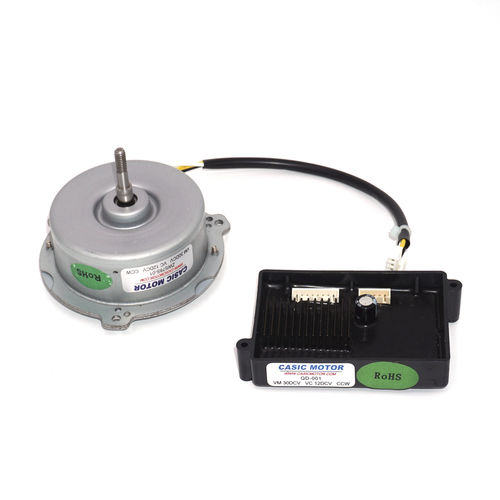

DC motor ZWS78S-01brushlessblowerfor air heaters
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Applications
- blower, for air heaters, for dryers
- Torque
0.035 Nm
(0.0258 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 4,500 rpm
(28,274.33 rad.min-1)- Diameter
78 mm
(3.07 in)
Description
Model : ZWS78S-01
Rated voltage : 30VDC
No load current : 0.4A Max
No load speed : 5200Rpm±10%
Rated current : 1.0A Max
Rated speed : 3600 Rpm±10%
Rated torque : 0.035N.m
Direction of rotation : CW / CCW
Efficiency : 35.8% Max
Noise : 65dBA Max
Application:
Washer Dryer, Fan, Heater Shower
Size:
Φ78xL31.2mm
Parameter:
30VDC/4500Rpm/0.035N.m
