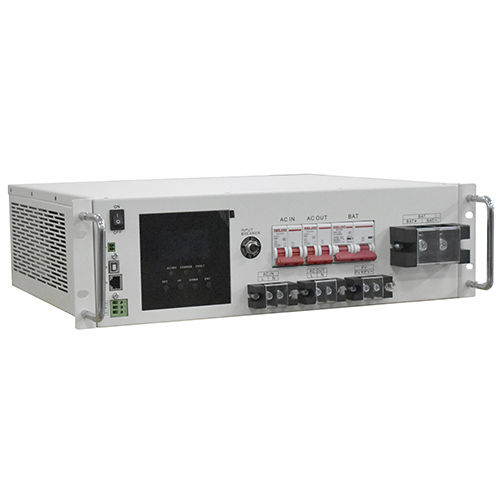

Off-grid charger/inverter

all-in-onesolar48-volt

Basic system introduction The figure below shows the system application scenario for this product, and a complete system consists of the following parts: 1. PV module: converts light energy into DC energy to charge the battery through an all-in-one machine, or directly changes to alternating current to power the load. 2. Mains or generator: connected at the AC input, to supply power to the load and charge the battery. If not connected to the mains or a generator, the system can also operate normally, and at this time, the load is powered by the battery and PV module. 3. Battery: The role of the battery is to ensure the normal use of the system loads when the solar energy is insufficient and mains is not available. 4. Household load: It can be connected to various household and office loads, including refrigerators, lamps, TVs, fans, air conditioners, and other AC loads. 5. All-in-one inverter controller: energy conversion unit of the whole system. The specific system wiring method is determined by the actual application scenario.
