Embedded DC/DC converter TSS-48400high-voltagepowerrectifier
Add to favorites
Compare this product
Characteristics
- Configuration
- embedded
- Electrical characteristics
- power, high-voltage, rectifier
- Applications
- for telecom applications
- Other characteristics
- high-performance, RS485, hot-swap
- Input voltage
Max.: 425 V
Min.: 120 V
- Output voltage
-53.5 V
- Power
Max.: 24,000 W
Min.: 0 W
Description

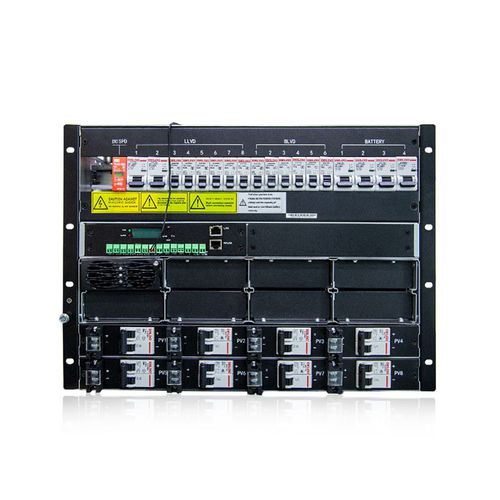

48V 400A Embedded Telecom Power System
SPECIFICATION:
Model Number:TSS-48400
System capacity：8U400A
Input voltage range： 120~425Vdc
Output voltage：-53.5Vdc
Output current： 400A （MAX）
Output capacity: 24KW (MAX)
Solar modules quantity: 1~8pcs
CONFIGURATION:
Pv input: MCB 25A / 2P * 8, DC-SPD * 8
Battery access: MCB 125A / 1P * 4
DC output: DC-SPD * Class 1-C
Secondary load disconnect: MCB 100A / 1P * 2,63A / 1P * 4,32A / 1P * 2
Primary load disconnect: MCB 63A / 1P * 2,32A / 1P * 2,16A / 1P * 2
Secondary load disconnect is controlled by the 400A contactor (normally closed)
Primary load disconnect is controlled by the 200A contactor (normally closed)
Note: above configurations can be customized.
Application field:
Telecom;
Data center
