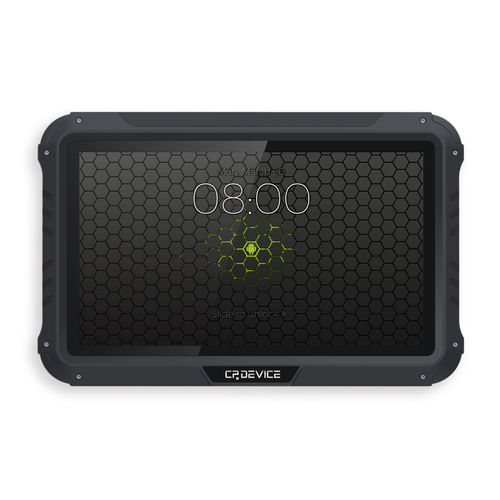

LCD panel PC APOLLO 10 Procapacitive touch screenmulti-touch screenwidescreen
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, capacitive touch screen, multi-touch screen, widescreen
- Display size
- 10.1"
- Resolution
- 1024 x 600
- Processor
- ARM Cortex
- Operating system
- Android
- Construction
- modular, compact, fanless, aluminum frame, slim design
- Mounting
- VESA mounting, embedded, vehicle-mount
- Applications
- for the mining industry, industrial, for railway, for IoT applications, for the food industry, for data acquisition systems, data acquisition, medical, for hazardous areas, for the pharmaceutical industry, for clean rooms, for marine applications
- Protection level
- IP65, full IP65, waterproof, rugged, robust, waterproof front panel, dust-proof, corrosion-proof, shock-proof, washdown, MIL-STD-810, ultra-rugged, vibration-resistant
- Other characteristics
- real-time, multimedia, HMI, all-in-one, wireless, sunlight-readable, fullscreen, wide temperature range, high-performance, with external power adapter, outdoor
Description
Apollo 10 Pro rugged in-vehicle tablet is specially designed to endure the harshest environments and deliver reliable performance. It is now widely used in the auto-steering system in Chinese agricultural industry and machinery control industry.
Key Features:
-System: Android 9.0
-CPU: Octa-core, 1.8GHz, 2G RAM, 16G ROM, Supports 256G TF Extension
Display: 10.1", 1024*600p, 750cd/㎡, 10-Point Capacitive Multi-touch Screen
-Communication: 2.4GHz/5.8GHz WiFi, IEEE 802.11 a/b/g/n/ac, Supports WiFi Shared Hotspot, BT2.1+EDR/3.0/4.1LE/4.2BLE, 4G/LTE (Dual SIM Optional), GNSS (GPS/BDS/GLONASS), Optional Centi-meter Level GNSS OEM Board, Optional Interial Navigation Module, Built-in MIC (Optional), Built-in Speaker
-Rugged Features: IP65, Vibration & Shock: MIL-STD-810, Road Vehicle Standard: ISO16750, Humidity 95%, Non-condensing, Operation Temperature: -20℃~+70℃, Storage Temperature: -40℃~+85℃
-Button: Power Key*1, Function Key*2
-I/O Interface: RS-232*2, RS-485*1, CAN*1 or CAN*2 (Supports J1939, CANopen, ISO15765) , DI*2, DO*2, USB 2.0*1, 720p*4/1080p*2 AHD Camera, 12V DC OUT*2, Ethernet*1
-Power Management: 9-36V DC Input, Ignition Control
