Embedded PC TANK GEN1

ARM CortexCAN busRS-232

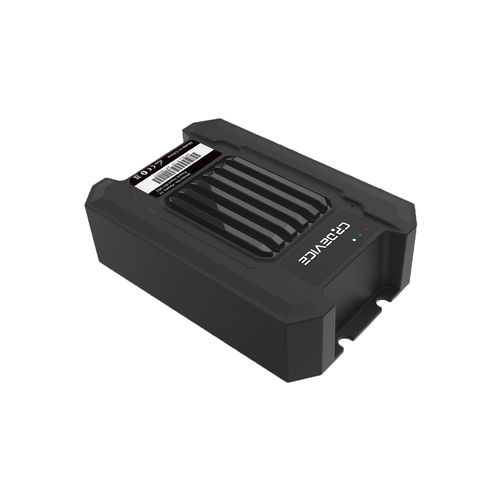

Tank GEN1 embedded box PC is purposefully built in rugged, compact design, yet to deliver incredible performance. With powerful Octa-core CPU, wide range of connectivity options, and most importantly, the stable operations in extreme conditions, the device brings you the services that are both reliable and effective. This model is well suited for industrial use. Key Features: -Android 9.0 -Vehicle-grade CPU; Octa-core 1.8G Hz; 2G RAM; 16G ROM; Support 256G TF extension; GPU support OpenGLES 3.1 -Support external screen output (7/10.1 inch 1024*600p capacitive touch screen) -2.4GHz/5.8GHz WiFi, IEEE 802.11 b/g/n, Support Wifi shared hotspot; BT2.1+EDR/3.0/4.1LE/4.2BLE; 4G / LTE ( Dual SIM optional) -GNSS (GPS/BDS/GLONASS); Optional Centi-meter level GNSS OEM board; Optional inertial navigation module -Support multiple AHD camera -3 Axis gyroscope design -Support SPI System -9-36V DC input; Ignition sense; Optional UPS backup battery -Support 250K/500K CAN bus (J1939, CANOpen, IS015765) -IP65; Vibration & shock: MIL-STD-810; Road vehicle standard: ISO16750; Humidity 95%, non-condensing; Operation temperature: -20℃~70℃; Storage temperature: -40℃~85℃
