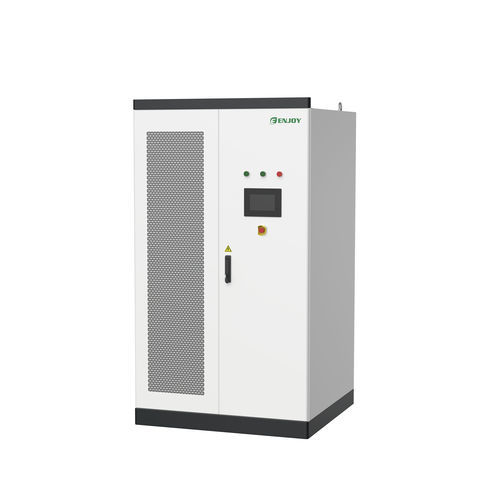

Hybrid DC/AC inverter EMGS series
bidirectional

Hybrid DC/AC inverter - EMGS series - Shenzhen Enjoy Technology Co., Ltd. - bidirectional
Hybrid DC/AC inverter - EMGS series - Shenzhen Enjoy Technology Co., Ltd. - bidirectional
Hybrid DC/AC inverter - EMGS series - Shenzhen Enjoy Technology Co., Ltd. - bidirectional - image - 2
Hybrid DC/AC inverter - EMGS series - Shenzhen Enjoy Technology Co., Ltd. - bidirectional - image - 3
Hybrid DC/AC inverter - EMGS series - Shenzhen Enjoy Technology Co., Ltd. - bidirectional - image - 4
Add to favorites
Compare this product


Characteristics

Type
hybrid
Other characteristics
bidirectional
Power

30,000 W, 50,000 W, 100,000 W, 250,000 W, 500,000 W

Output power kVA

33 kVA, 55 kVA, 110 kVA, 275 kVA, 550 kVA
(44.867498 hp, 74.779164 hp, 149.558327 hp, 373.895818 hp, 747.791635 hp)

Output voltage

220 V, 230 V, 380 V, 400 V

Voltage

Max.: 800 V

Min.: 180 V

Primary current

Max.: 1,000 A

Min.: 133 A

Description

The bi-directional ACDC module for energy storage, DCDC module running MPPT, static transfer switch and EMS provided by Enjoy can be combined into an integrated hybrid compensation solution, which is suitable for industrial and commercial applications and supports a system capacity of up to 500kW. Function: customizable Price: affordable, negotiable Warranty: standard 1 year, negotiable 1. Overview The hybrid photovoltaic storage integrated machine integrates MPPT photovoltaics, energy storage bidirectional ACDC inverters, STS and EMS, etc., and can be connected to photovoltaics and batteries to provide grid-connected and backup power for the load. 4. Features Hybrid:PV + battery DC couple, Multi-PV is acceptablelBuilt in multiple operation strategies Flexible:Seamless on/off grid switching, provide backup powerlSupport multiple microgrid applications Reliable:Modular solution that provides N+1 redundancylCan be linked with BMS, EMS, fire protection systems Intelligent:Modular design with customizable capacitylProgrammable working mode, HMI control
