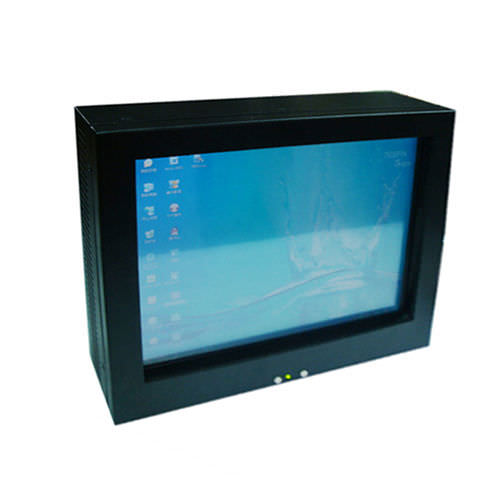

TFT LCD panel PC HSIPC-190

with touch screen19"1280 x 1024

The manufactured by Hengstar Technology is an industrial PC that has SXGA resolution TFT LCD screen. It is integrated with low power Intel Atom N270 1.6GHz CPU processor at 533 MHz FSB. The front plate of the unit is rugged and low profile design with NEMA 4 and IP 65 degree of protection. The selected sizes are 12.1 ", 15", 17 ", 19". The unit is RoHS complaint and can operate under wide temperature ranges between -10°C to +50°C. The LCD screen offers 1280 x 1024 (SxGA) classes high resolution at a pixel pitch of 0.294*0.294 mm. The response time of the 5 wire industrial resistive touch screen is less than 10ms and offers a durability of more than 10,000,000 single touch. The touch media can be either finger / stylus or rubber. The PC and TV have separate support systems with a respective set of features. The CPU runs on a 2GB DDR2 RAM and Intel Atom N270 1.6GHz. The overall unit is compact and rugged as it is a fan-less design. It is IP65 (NEMA 4) certified and runs on a minimal power consumption.
