SCSI cable assembly data transmissiondatasignal
Add to favorites
Compare this product
Characteristics
- Cable type
- data transmission, data, signal, SCSI
- Configuration
- twisted pair
- Other characteristics
- EMI
Description

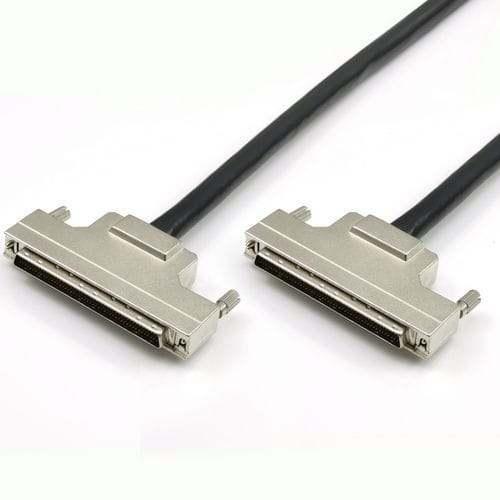

SCSI 100pin Communication Data Cable made of UL 20276 50pairs twisted 28awgShielded Cable and 1.27mm SCSI II 100pin connector. Zinc Die cast cover andThumbscrew Locking provide strong connection, high Performance of datatransmission, outstanding quality, and excellent EMI/RFI protection.
SCSI 100pin Data Cable RoHS and REACH compliant. Himatch construct the cableby UL 20276 50 twisted pair 28awg Shielded Cable and 1.27mm SCSI II 100pinconnector. Zinc Die cast cover and Thumbscrew Locking provide strongconnection, high Performance of data transmission, outstanding quality ,andexcellent EMI/RFI protection.
360 degreeshield with copper foil
100% electronically tested for functionality
Low noise and good performance in skew
Shielded pairs provide superior signal integrity
IndustrialComputer
Older scanners,controllers
ExternalSCSI device cases.
Supports dataspeeds up to 320 MBPS
Supports LVD & HVD
