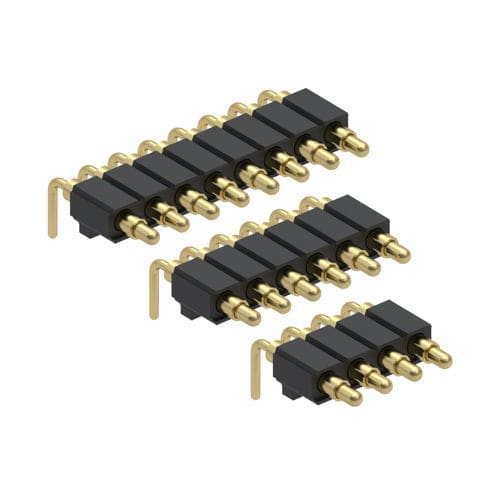

Spring Pogo pin H-PCP-C0020

goldstainless steelnickel

Plunger Brass Tube Brass Spring Stainless Steel Wire Housing High Temp. Thermal Plastics Plating Finish Plunger 0.4um Hard Gold over Nickel underplate Tube 0.1um Hard Gold over Nickel underplate Precision-machined contact pins,receptacles, spring-loaded connectors, PCB pins, available in SMT and through-hole. 1. Voltage: 36VDC Max. or 150 VDC/100 VRMS (Temperature Rise VS Current Rating) 30 °C Max. 2. Insulation Resistance 1000 M ohm Min. at 500 VDC 3. Dielectric Withstanding Voltage 500VAC 1 minute between adjacent contact Capacitance between two adjacent contacts 1 pF Max. 1. Operating Temp. -40 °C to +85 °C 2. Storage Temp. -40 °C to +85 °C 3. Solderability solder coverage area Min.95% 4. Salt Spray Corrosion 48-96 Hours 5. Resistance to Solder heat 2 Cycles Reflow@ Peak 260 °C 20S 6. Humidity 96 hours @ 93% R.H. 40 °C 7. Temperature Life 105°C 96hrs
