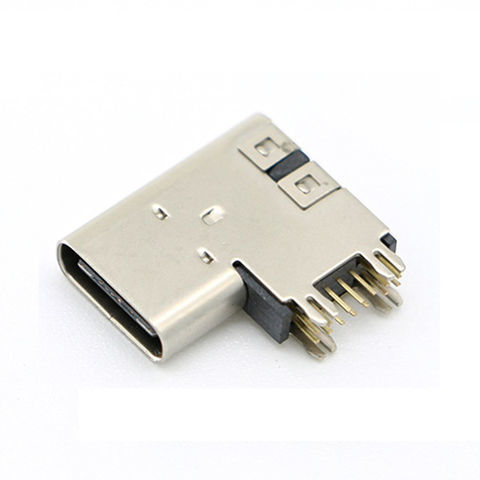

Type C receptacle
Pos: 24p
L size: 8.65mm
Dual shell
Mount direction: Up right
Mount style: Dip type
Packing: Tape and Reel
MPQ: 5000pcs/reel
Lead time:2-3 weeks
OEM available
Internal Latch design to eliminate external scratches on cables plug shell
Flippable plug for good customer experience
Bullet nose plug entry for ease of mating
Standard 3A current rating
PD 5A current rating option
Improved internal and external RFI performance
One connector with power charging, data transfer, DP video and audio capability
Top mount, mid mount and docking solutions
Over 10,000 cycles durability
Click Mating / Un-mating feel and sound
Voltage Rating: 50 Vac(rms)
Temperature Range:
storage: -20ºC to +60ºC
operating: -40ºC to 80ºC
nominal: +20ºC
LLCR: 40mΩ (initial) Δ50 mΩ (after)
Dielectric Strength: 100 Volts
Insulation Resistance: 100 MΩ Min.
High current: 5A current shuld be applied to Vbus pins
Durability: 10,000 cycles
Extraction Force:
6~1,000 Cycles 8N~20N
1,001 ~ 10,000 Cycles 6N~20N
Storage (Personal Cloud, Network-Attached Storage)
Smartphone
Tablet
Notebook (Laptops)
Hybrid-Detachable (NB-Tablets)
Docking
Peripherals (Monitor/Display, Projector…)
Automotive Infotainment
Home Entertainment
