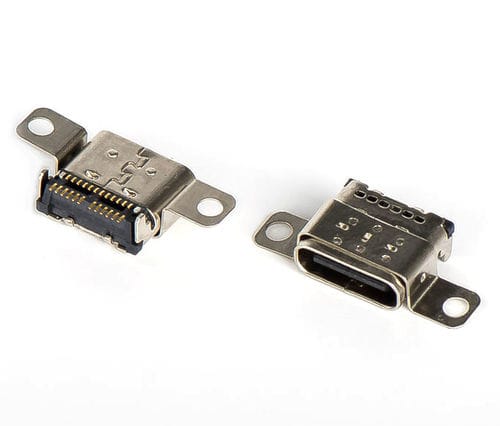

Data connector H-UC-043 C/F

SMTscrewpower

Type C receptacle Pos: 24p Dual shell with screw lock Mount direction: Right angle Mount style: SMT type Packing: Tape and Reel MPQ: 5000pcs/reel Lead time:2-3 weeks OEM available Internal Latch design to eliminate external scratches on cables plug shell Flippable plug for good customer experience Bullet nose plug entry for ease of mating Standard 3A current rating PD 5A current rating option Improved internal and external RFI performance One connector with power charging, data transfer, DP video and audio capability Top mount, mid mount and docking solutions Over 10,000 cycles durability Click Mating / Un-mating feel and sound Voltage Rating: 50 Vac(rms) Temperature Range: storage: -20ºC to +60ºC operating: -40ºC to 80ºC nominal: +20ºC LLCR: 40mΩ (initial) Δ50 mΩ (after) Dielectric Strength: 100 Volts Insulation Resistance: 100 MΩ Min. High current: 5A current shuld be applied to Vbus pins Durability: 10,000 cycles Extraction Force: 6~1,000 Cycles 8N~20N 1,001 ~ 10,000 Cycles 6N~20N Storage (Personal Cloud, Network-Attached Storage) Smartphone Tablet Notebook (Laptops) Hybrid-Detachable (NB-Tablets) Docking Peripherals (Monitor/Display, Projector…) Automotive Infotainment Home Entertainment
