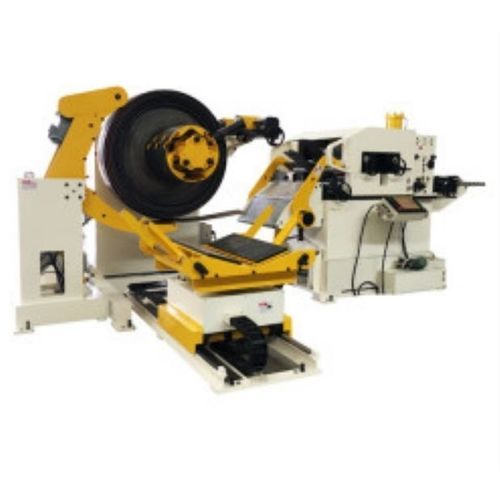

Sheet metal decoiler-straightener-feeder GLK4 series

Applicable material: SPCC SPHC, Galvanized coil, Aluminium coil etc. Coil car: The support structure is V shape, and the surface is treated with sandblasting and rust prevention Pressing arm and supporting arm: Pressing arm and supporting arm Expansion style: Hydraulic pull rod driven Limitting roller width adjust: Screw rod + hand wheel. Center alignment reference with scales; Pressing roller: Motor driven; Coil Input supporting arm: Pneumatic driven, touch screen controlled Straightener roller adjustment: worm gear drive, adjusted by hand wheel Straightener auxiliary roller: placed on the center Feeding line height adjust way: Motor-driven , Feeding line height # 100mm Coil width: 70mm-1300mm Material thickness: 0.6mm-6.0mm Coil weight: 5T/7T Line speed: 20m/min Line length: 5m Material: CR Steel, HR Steel, Galvanized Steel etc.
