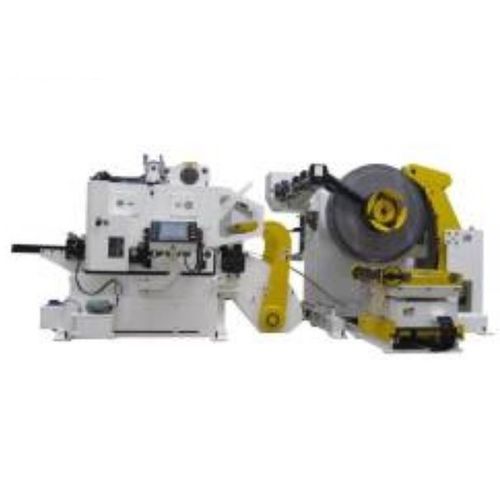

Sheet metal decoiler-straightener-feeder GLK5-800

1, Decoiler mandrel loading width 70-800mm, loading weight 5000kgs 2, Expansion: Hydraulic connecting rod type, expansion range Ф475mm-Ф520mm 3, Drive Motor: AC gear motor, with inverter control 4, Driving Method: Big pitch double-row chain transmission 5, Brake Mode: Pneumatic disc brake 6,, Uncoiling Direction: Counterclockwise 7, Pressing Arm: Add pressure on coil, prevent coil disperse, open/close by hydraulic ( PU wheel, 1pc). It is selective used when automatic operation 8, Limiting Arms: Locating coil, prevent coil slip, open/close by air cylinder, distance between arms adjusted by hand wheel(electronic adiustment can be customized) 9, Supporting Arm: Auxiliary support the metal strip go to straightening part, powered by air cylinder 10, Loop control by photoelectric sensor 1, Straightening Rolls: Ф88mm*12pcs (up6/down6) 2, Auxiliary Rolls: 1 group (up6/down5 for each group) 3), Feeding Rolls: 2pcs 4, Rolls Drive: Side gear drive 5, Straightening Rolls Support: Deep groove ball bearing 6, Straightening Rolls Release: Pneumatic type 7, Drive Method: AC servo motor, 15Kw 8, Straightening Pressure: Electric adjustment, displayed by dial scale, setting precision 0.1mm Feeding Precision: #0.15mm when feeding length 500mm 9. Max. Feeding Speed: 22m/min 10, Feeding Height Adjustment: Electric adjustment Automotive parts: Tie bar, Bracket, Damper, Brake pad Electrical accessory: Shell parts of printers, computers etc. Hardware parts
