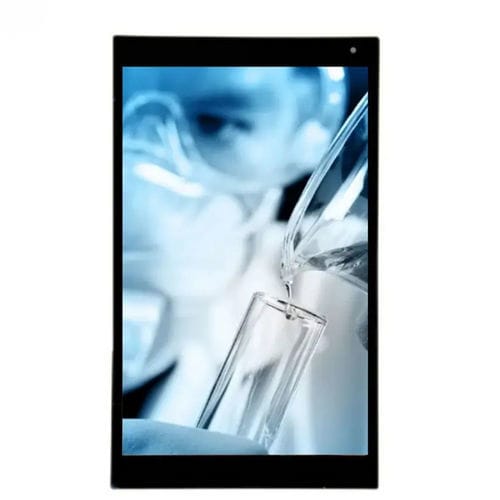

TFT LCD display module HG101WU008T01
IPScapacitive touch screenhigh-resolution

TFT LCD display module - HG101WU008T01 - Shenzhen Hongguang Display Co., Ltd - IPS / capacitive touch screen / high-resolution
TFT LCD display module - HG101WU008T01 - Shenzhen Hongguang Display Co., Ltd - IPS / capacitive touch screen / high-resolution
TFT LCD display module - HG101WU008T01 - Shenzhen Hongguang Display Co., Ltd - IPS / capacitive touch screen / high-resolution - image - 2
TFT LCD display module - HG101WU008T01 - Shenzhen Hongguang Display Co., Ltd - IPS / capacitive touch screen / high-resolution - image - 3
TFT LCD display module - HG101WU008T01 - Shenzhen Hongguang Display Co., Ltd - IPS / capacitive touch screen / high-resolution - image - 4
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, IPS, capacitive touch screen
Format
high-resolution, 1200 x 1920
Screen size
10.1"
Applications
industrial, control
Interface
MIPI
Configuration/mounting
outdoor
Width

148.4 mm
(5.8425 in)

Height

253.4 mm
(9.9764 in)

Depth

4.1 mm
(0.16 in)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Description

HG101WU008T01 | 10.1 inch TFT LCD Screen | MIPI | IPS | High Resolution | 1200x1920 Pixels | Capacitive Touchscreen This 10.1-inch TFT LCD Panel is a high-resolution display with a capacitive touch screen. They are an excellent choice for any application that requires reliable and high-quality visual output. It widely uses in outdoor advertising, transportation, and industrial control. Diagonal: 10.1 (inch) Resolution: 1200x1920(pixel) Display Type: IPS Display Mode: Transmissive Optimal View: ALL Touch Screen: Custom Module Dimensions: 148.40 x 253.40 x 4.10 (mm) (W x H x D) Active Area: 135.36 x 216.58 (mm) (W x H) Luminance: 300 (cd/m2) Interface: MIPI Operating Temperature: -10~+60 (°C) Storage Temperature: -20~+70 (°C)
