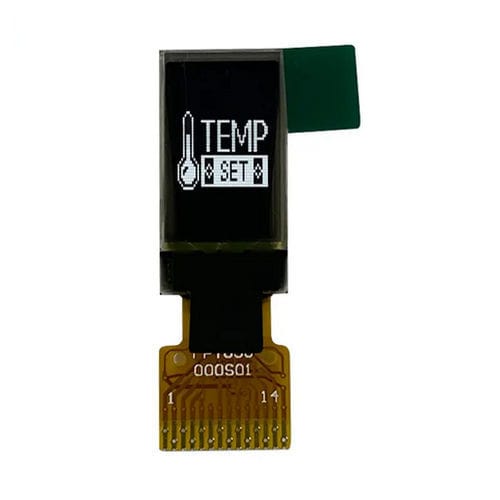

PMOLED display module HG005WS00348 x 880,5"industrial
Add to favorites
Compare this product
Characteristics
- Screen type
- PMOLED
- Format
- 48 x 88
- Screen size
- 0,5"
- Applications
- industrial
- Interface
- SPI, I2C
- Structure
- compact
- Width
9 mm
(0.3543 in)- Height
27.6 mm
(1.0866 in)- Depth
1.23 mm
(0.05 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -40 °C
(-40 °F)
Description
This 0.5-inch PMOLED display with a resolution of 48x88, and is available with three different interface options SPI, I2C, and 8080 parallel.
The PMOLED technology used in this display offers excellent contrast and brightness, making it ideal for use in low-light conditions
Matrix Type
Passive
Display Colours
White
Contrast Ratio
-
10000:1
Active Area
6.12 x 11.24 (mm) (W x H)
Driver IC
CH1115
Luminance
330 (cd/m2)
