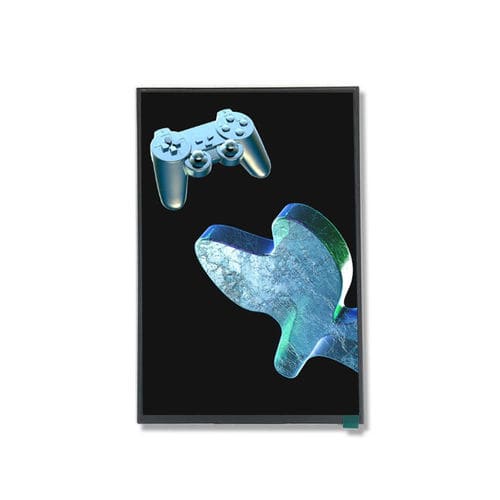

10.1" display module HG101WX046
TFT LCDIPScolor

10.1" display module - HG101WX046 - Shenzhen Hongguang Display Co., Ltd - TFT LCD / IPS / color
10.1" display module - HG101WX046 - Shenzhen Hongguang Display Co., Ltd - TFT LCD / IPS / color
10.1" display module - HG101WX046 - Shenzhen Hongguang Display Co., Ltd - TFT LCD / IPS / color - image - 2
10.1" display module - HG101WX046 - Shenzhen Hongguang Display Co., Ltd - TFT LCD / IPS / color - image - 3
10.1" display module - HG101WX046 - Shenzhen Hongguang Display Co., Ltd - TFT LCD / IPS / color - image - 4
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, IPS
Type
color
Format
800 x 1280
Screen size
10.1"
Applications
industrial, for vehicles
Interface
MIPI
Configuration/mounting
integrated
Other characteristics
custom
Width

143 mm
(5.6299 in)

Height

228.6 mm
(9 in)

Depth

2.6 mm
(0.1 in)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 50 °C
(122 °F)

Description

The 10.1 inch TFT LCD panel with IPS technology and a resolution of 800x1280 pixels offers a high-quality visual experience for a wide range of applications. With its vibrant colors, wide viewing angles, and efficient MIPI interface, this display is designed to meet the demands of various industries. It can be integrated into automotive infotainment systems, rear-seat entertainment displays, and instrument clusters. It provides drivers and passengers with visually appealing and informative displays for a more enjoyable driving experience. Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen. The material is RoHS-compliant. Display Mode Normally Black Optimal View ALL Touch Screen Custom Active Area 135.36 x 216.58 (mm) (W x H) Luminance 300 (cd/m2) Storage Temperature - -20~+70 (°C)

Catalogs

No catalogs are available for this product.

See all of Shenzhen Hongguang Display Co., Ltd‘s catalogs

Other Shenzhen Hongguang Display Co., Ltd products

High Resolution Display
