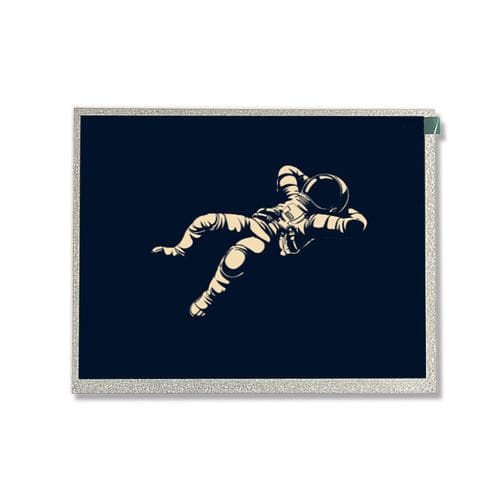

TFT LCD display module HG097XG008IPS1024 x 7689.7"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS
- Format
- 1024 x 768
- Screen size
- 9.7"
- Applications
- industrial, for medical equipment, control, for control panels
- Interface
- LVDS
- Structure
- compact
- Configuration/mounting
- integrated
- Other characteristics
- custom
- Width
210.16 mm
(8.274 in)- Height
164.25 mm
(6.4665 in)- Depth
5 mm
(0.2 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
The 9.7-inch TFT LCD with an IPS display. This display features a resolution of 1024x768 pixels and utilizes the LVDS interface. It offers exceptional visual performance and is well-suited for a wide range of applications.
It is designed to be easily integrated into various devices and systems. Its compact size and lightweight construction make it well-suited for gate access control systems, security gates, and other related applications.
Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen.
The material is RoHS-compliant.
Display Mode
Normally Black
Optimal View
ALL
Touch Screen
-
Custom
Active Area
196.61 x 147.46 (mm) (W x H)
Luminance
350 (cd/m2)
Storage Temperature
-30~+80 (°C)
