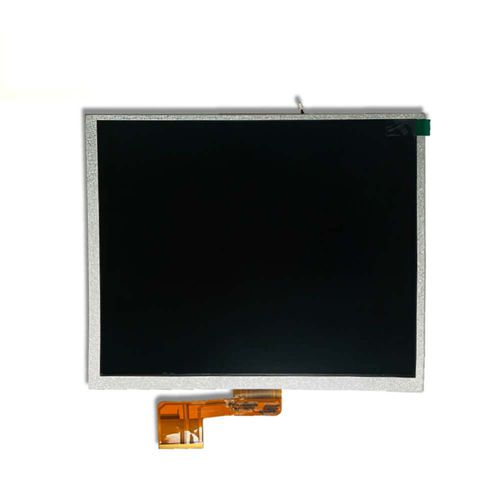

10.4" display panel HG104SV004
TFT LCDTNcolor

10.4" display panel
10.4" display panel
10.4" display panel
10.4" display panel
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, TN
Type
color
Format
800 x 600
Screen size
10.4"
Applications
industrial, for control panels, for medical equipment, medical
Interface
RGB
Configuration/mounting
outdoor, integrated
Other characteristics
custom
Width

228.5 mm
(8.9961 in)

Height

175.5 mm
(6.9094 in)

Depth

5 mm
(0.2 in)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Description

This is a high-quality 10.4-inch TFT LCD panel that offers excellent visual performance. With a resolution of 800x600 pixels, this display delivers sharp and vibrant images with rich color reproduction. The RGB interface ensures smooth and seamless data transmission, allowing for accurate and reliable image rendering. Featuring a TN (Twisted Nematic) display technology, it provides fast response times, making it suitable for applications that require quick image transitions and minimal motion blur. This display is ideal for various industrial and commercial applications where visual clarity and responsiveness are crucial. With a brightness rating of 400 cd/m², it offers excellent visibility even in bright ambient lighting conditions. This high brightness level ensures that the displayed content remains clear and legible, making it suitable for outdoor or brightly lit environments. This 10.4-inch TFT LCD panel is versatile and can be integrated into a wide range of applications such as medical equipment, industrial control systems, transportation displays, and more. Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen. The material is RoHS-compliant. Display Mode - Normally Black Optimal View 6:00 Touch Screen - Custom Active Area 211.20 x 158.40 (mm) (W x H) Luminance 400 (cd/m2) Storage Temperature -30~+70 (°C)
