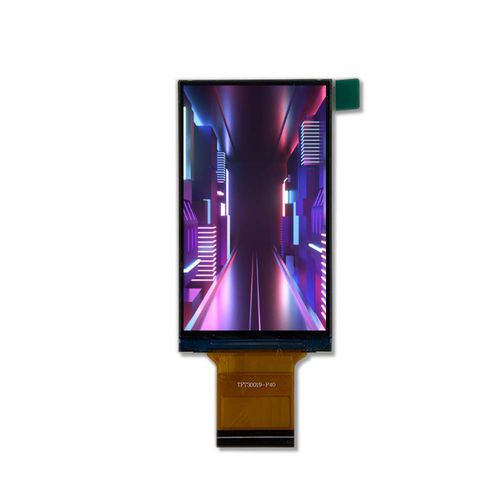

3" display module HG030FW006
TFT LCDIPSTN

3" display module - HG030FW006 - Shenzhen Hongguang Display Co., Ltd - TFT LCD / IPS / TN
3" display module - HG030FW006 - Shenzhen Hongguang Display Co., Ltd - TFT LCD / IPS / TN
3" display module - HG030FW006 - Shenzhen Hongguang Display Co., Ltd - TFT LCD / IPS / TN - image - 2
3" display module - HG030FW006 - Shenzhen Hongguang Display Co., Ltd - TFT LCD / IPS / TN - image - 3
3" display module - HG030FW006 - Shenzhen Hongguang Display Co., Ltd - TFT LCD / IPS / TN - image - 4
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, IPS, TN
Type
color
Format
high-resolution, 360 x 640
Screen size
3"
Applications
instrumentation, information, digital signage
Interface
RGB, SPI, MIPI
Structure
compact
Configuration/mounting
mobile
Other characteristics
custom
Width

40.84 mm
(1.6079 in)

Height

73.17 mm
(2.8807 in)

Depth

2.05 mm
(0.08 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

HG030FW006 | 3.0 inch TFT LCD Panel | IPS Display | 360x640 Resolution | MIPI Interface | Vertical Screen | This 3.0-inch TFT LCD panel redefines the standards of compact display technology. This panel has an IPS display, unparalleled color accuracy, and wide viewing angles. At the heart of this display lies a high-resolution 360 x 640 panel, providing a crisp and detailed image that will immerse you in every visual experience. The IPS display technology employed in this panel sets it apart from traditional TN panels. IPS delivers superior color reproduction, wider viewing angles, and enhanced gray-scale performance, ensuring that your content is faithfully represented from any angle. Furthermore, the display boasts a unique vertical screen orientation, which opens up a world of possibilities for innovative user experiences. This vertical format is particularly well-suited for applications that require a portrait-style display, such as e-readers, mobile point-of-sale terminals, and digital signage systems. Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen. The material is RoHS-compliant. Diagonal: 3.0 (inch) Resolution: 320x640 (pixel) Display Type: IPS Display Mode: Normally Black Optimal View: ALL Touch Screen: Custom Module Dimensions: 40.84 x 73.17 x 2.05 (mm) (W x H x D) Active Area: 36.72 x 65.28 (mm) (W x H) Luminance: 400 (cd/m2) Interface: MIPI / SPI+RGB16bit Operating Temperature: -20~+70 (°C) Storage Temperature: -30~+80 (°C)

Catalogs

No catalogs are available for this product.

See all of Shenzhen Hongguang Display Co., Ltd‘s catalogs
