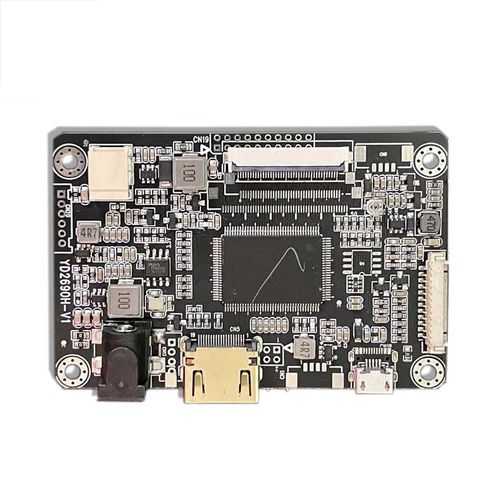

TFT LCD driver board HGYD2690H-V1

HDMILVDSTTL

The HGYD2690H-V1 LCD driver board is mainly designed for TFT LCD screens and is suitable for LCD screens and some other flat panel displays. Input signal type: digital high definition (HDMI). The board supports: USB Micro 5V voltage input, (the board DC socket supports wide voltage input 9V~16V; typical value 12V default NC) Wide temperature operating range: -20℃ ~ +80℃ The board comes with LED backlight driver circuit: supports small and medium-sized LED backlight 9~25V voltage drive. The board comes with a T-CON circuit: which can directly drive small and medium-sized LVDS/TTL LCDs without T-CON Support PWM duty cycle to adjust backlight brightness Display output interface: TTL/RGB-FPC0.5mm 50pin, TTL/RGB-FPC0.5mm 40pin, LVDS FPC0.5mm 40pin Adapt to the high-definition HDMI resolution of PC (personal computer) graphics card: 320x240,480x272,800x480,800x600,1024x600,1024x768,1280x720,1280x800,1280x1024,1366x768 and other resolutions; Features: This board has the characteristics of simple operation and reliable performance. Outline Dimension: 78.00mm×50.00 mm×13.50mm（L×W×H） Display Interface: LVDS/TTL Display Color: 24-bit (3×8, 16.7M) Operation Interface: OSD operation interface with visualization Communication Interface: Digital keys, Infrared (IR), I²C Control Area: LCD resolution ranging from 800×480 to 1920×1200 Operating Temperature: -20℃～80℃; -30℃～80℃ (except main chip) Storage Temperature: -40℃ to 70℃ Working Environment: Atmospheric Pressure Range: 70kPa to 106kPa MTBF: >100,000 hours Display Voltage: Jumper selectable between 3.3V and 5V Signal Input: VGA, HDMI
